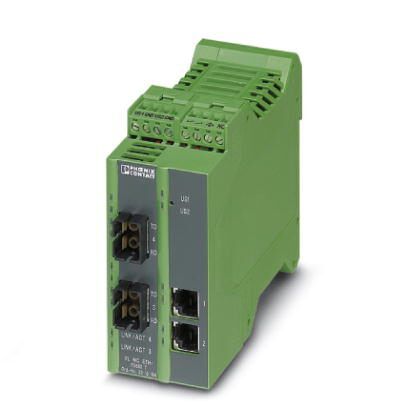

Phoenix Contact 2313164
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Ethernet T-coupler for converting from 2x RJ45 to 2x SC-RJ FO, 660 nm, 100 m distance with HCS fiber, for all network structures, redundancy with RSTP + FRD, configuration with WBM, IGMP snooping, multicast filtering, VLAN, SNMP, and port mirroring integrated.FO converters - FL MC ETH/FO 660 T - 2313164
Phoenix Contact 2313164 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 55 °C
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 10 % - 95 % (non-condensing)
- Permissible humidity (storage/transport)
- 10 % - 95 % (non-condensing)
Dimensions
- Depth
- 123 mm
- Height
- 99 mm
- Width
- 45 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
Function
- Basic functions
- Store-and-forward media converter standard-compliant IEEE 802.3 2, priority classes according to IEEE 802.1 P, TCP/IP protocol, BootP-compatible, port mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP)
- Redundancy
- FRD (Fast Ring Detection)
- RSTP (Rapid Spanning Tree Protocol)
- Large Tree Support
- Signal contact control voltage
- 24 V
- Status and diagnostic indicators
- 2 status LEDs per Ethernet: activity and duplex mode, supply voltage US₁ and US₂ (redundant supply voltage) as well as LED BAR GRAPH for FO ports for displaying the system reserve for each optical interface.
- Supported browsers
- Internet Explorer 5.5 or higher
Interfaces
- Interface
- POF/PCF
- Ethernet (RJ45)
- No. of ports
- 2 (SC-RJ)
- 2 (RJ45 ports)
- Note on the connection method
- Auto negotiation and autocrossing
- Transmission length
- up to 250 m (depending on the fiber used)
- 100 m (per segment)
- Transmission physics
- Copper
- POF-SCRJ
- Transmission speed
- 10/100 Mbps
- 10/100 Mbps (full duplex)
Network expansion parameters
- Cascading depth
- Line, star, tree and redundant ring; any cascading depth
- Maximum conductor length (twisted pair)
- 100 m
Standards and Regulations
- Electromagnetic compatibility
- Conformance with EMC directive 89/336/EC
- Noise emission
- EN 61000-6-3/-4
- Noise immunity
- EN 61000-6-2:2005
- Vibration (operation)
- in acc. with IEC 60068-2-6: 5g, 150 Hz
- Vibration (storage/transport)
- 5g, 150 Hz, in acc. with IEC 60068-2-6
Supply voltage
- Residual ripple
- 3.6 VPP (within the permitted voltage range)
- Supply voltage
- 24 V DC
- Supply voltage range
- 18.5 V DC - 30.5 V DC
- Typical current consumption
- 400 mA (at US = 24 V DC)
