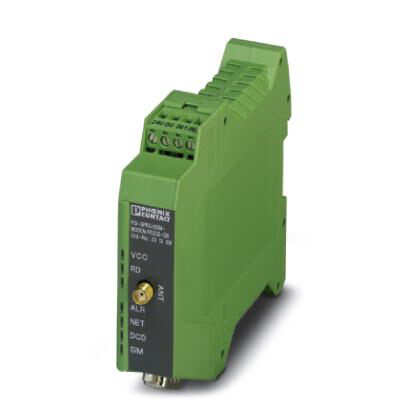

Phoenix Contact 2313106

Ambient conditions

• Altitude
  • ≤ 2000 m (With UL approval)
  • ≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation)
• Ambient temperature (operation)
  • -25 °C - 60 °C
• Degree of protection
  • IP20
• Noise immunity
  • EN 61000-6-2:2005

Conformance/approvals

• Designation
  • EAC
  • Corrosive gas test
  • CE
  • UL, USA/Canada
• Identification
  • Class I, Zone 2, AEx nA IIC T4
  • ISA-S71.04-1985 G3 Harsh Group A
  • Class I, Zone 2, Ex nA IIC T4 Gc X
  • 508 Listed
  • CE-compliant
  • EAC

Digital inputs

• Current input signal
  • 5 mA
• Description of the input
  • Digital input
• Number of inputs
  • 2
• Voltage input signal
  • 9 V DC - 60 V DC

Digital outputs

• Current output signal
  • ≤ 80 mA (24 V)
• Number of outputs
  • 1
• Output name
  • Digital output
• Voltage output signal
  • 10 V DC - 30 V DC

Dimensions

• Depth
  • 118.6 mm
• Height
  • 99 mm
• Width
  • 22.5 mm

Environmental Product Compliance

• China RoHS
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
  • Environmentally Friendly Use Period = 50 years
• REACh SVHC
  • Lead 7439-92-1

Interfaces

• Connection method
  • D-SUB 9 plug
• Data flow control/protocols
  • Software handshake, Xon/Xoff or hardware handshake RTS/CTS
• File format/coding
  • Serial asynchronous UART/NRZ, 7/8 data, 1/2 stop, 1 parity, 10/11-bit character length
• Interface 1
  • V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1
• Transmission length
  • 15 m

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Power supply

• Nominal supply voltage
  • 24 V DC ±5 % (as an alternative or redundant, via backplane bus contact and system current supply)
• Supply voltage range
  • 10 V DC - 30 V DC (via pluggable COMBICON screw terminal block)
• Typical current consumption
  • < 80 mA (stand by)
  • < 350 mA (24 V DC)

Standards and Regulations

• Comments
  • Criterion B
• Contact discharge
  • ± 6 kV (Test Level 3)
• Electromagnetic compatibility
  • Conformance with RED Directive 2014/53/EU
• Frequency range
  • Test Level 3
• Indirect discharge
  • ± 6 kV
• Noise emission
  • EN 55032
• Noise immunity
  • EN 61000-6-2:2005
• Signal
  • ± 1 kV
• Standards/regulations
  • EN 61000-4-3
  • EN 61000-4-6
  • EN 61000-4-4
  • EN 55032
  • EN 61000-4-5
  • EN 61000-4-2
• Test result
  • 1 m
  • Storage: 30g, 11 ms period, half-sine shock pulse
  • 5g in each space direction
  • Operation: 15g, 11 ms period, half-sine shock pulse
• Type of test
  • Free fall in acc. with IEC 60068-2-32
  • Shock in acc. with EN 60068-2-27/IEC 60068-2-27
  • Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6

Wireless interface

• Antenna
  • 50 Ω impedance SMA antenna socket
• Data rate
  • ≤ 85.6 kbps
• Frequency
  • 1800 MHz (1 W (EGSM))
  • 850 MHz (2 W (EGSM))
  • 900 MHz (2 W (EGSM))
  • 1900 MHz (1 W (EGSM))
• GPRS
  • CS1 - CS4
  • Class 10, Class B
• GSM
  • CSD 9.6/14.4 kbps
• Interface description
  • GSM / GPRS
• Network check
  • LED to show data signal quality
• Network function
  • 4 time slots for receiving data, 2 time slot for transmitting data. The PIN is saved in the modem. After a voltage interruption, there is automatic redialing into the network Integrated TCP/IP Stack, independent connection establishment.
• SIM interface 1
  • 1.8 volt, 3 volt
