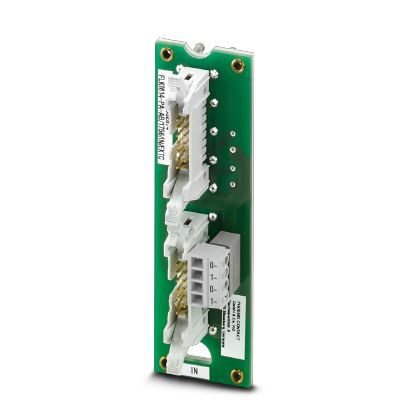

Phoenix Contact 2302874

Ambient conditions

• Ambient temperature (operation)
  • -20 °C - 50 °C
• Ambient temperature (storage/transport)
  • -20 °C - 70 °C
• Degree of protection
  • IP00
  • ≥ IP54 (Installation location)
• Maximum altitude
  • ≤ 2000 m

Connection data

• Connection method
  • IDC/FLK pin strip
• Connection name
  • Field level
• Number of connections
  • 2
• Number of positions
  • 14
• Pitch
  • 2.54 mm

Connection data 2

• Conductor cross section AWG
  • 28 - 16
• Conductor cross section flexible
  • 0.14 mm² - 1.5 mm²
• Conductor cross section solid
  • 0.14 mm² - 1.5 mm²
• Connection method
  • Screw connection
• Connection name
  • Supply

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 50 years
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
• REACh SVHC
  • Lead 7439-92-1

Note

• Note
  • At least one functional insulation against adjacent modules is complied with (in the support rail direction). If the application has stricter requirements for the insulation (basic insulation or reinforced insulation), they must be realized by applying suitable measures (e. g. partition plates).
  • Do not connect adjacent channels to SELV/ PELV and voltages dangerous to the touch.
  • No additional touch protection is required when using a SELV/PELV voltage (≤ 25 V AC or 60 V DC).
• Type of note
  • Notes on operation

Standards and Regulations

• Connection in acc. with standard
  • CUL
• Designation
  • Air clearances and creepage distances between the power circuits
• Insulation
  • Functional insulation
• Overvoltage category
  • II
• Pollution degree
  • 2
• Rated insulation voltage
  • 63 V
• Rated surge voltage
  • 0.6 kV
• Standards/regulations
  • DIN EN 50178

Supported controller

• Controller
  • ALLEN-BRADLEY ControlLogix
  • HONEYWELL Experion PKS C200
• suitable I/O card
  • 1756-IC16
  • 1756-IA16
  • 1756-IB16
  • 1756-IN16
  • TC-IDA 161
