Description

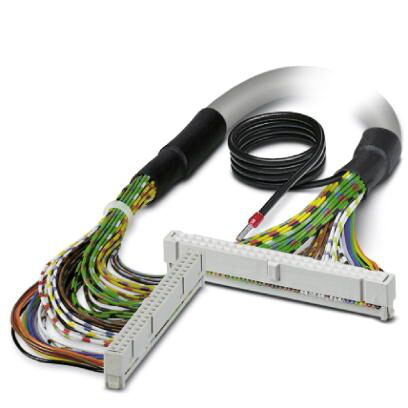

Assembled shielded round cable; connection 1: IDC/FLK socket strip (1x 50-position); connection 2: IDC/FLK socket strip (1x 50-position) (The braided shield is routed to a separate cable end.); cable length: 8 mCable - FLK 50/EZ-DR/ 800/KONFEK/S - 2299165
Phoenix Contact 2299165 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -10 °C - 70 °C (flexible installation)
- -40 °C - 70 °C (fixed installation)
- Ambient temperature (storage/transport)
- -40 °C - 80 °C
- Degree of protection
- ≥ IP54 (Installation location)
- IP00
- Maximum altitude
- ≤ 2000 m
Color code
- Connector 1 = connector 2 (optional) = wire color
- IDC/FLK50 (27) = IDC/FLK50 (27) = brown-gray
- IDC/FLK50 (28) = IDC/FLK50 (28) = brown-white
- IDC/FLK50 (41) = IDC/FLK50 (41) = yellow-blue
- IDC/FLK50 (18) = IDC/FLK50 (18) = white-violet
- IDC/FLK50 (26) = IDC/FLK50 (26) = brown-violet
- IDC/FLK50 (43) = IDC/FLK50 (43) = yellow-gray
- IDC/FLK50 (38) = IDC/FLK50 (38) = yellow-brown
- IDC/FLK50 (40) = IDC/FLK50 (40) = yellow-orange
- IDC/FLK50 (4) = IDC/FLK50 (4) = orange
- IDC/FLK50 (10) = IDC/FLK50 (10) = white
- IDC/FLK50 (6) = IDC/FLK50 (6) = green
- IDC/FLK50 (35) = IDC/FLK50 (35) = green-gray
- IDC/FLK50 (19) = IDC/FLK50 (19) = white-gray
- IDC/FLK50 (5) = IDC/FLK50 (5) = yellow
- IDC/FLK50 (30) = IDC/FLK50 (30) = green-brown
- IDC/FLK50 (14) = IDC/FLK50 (14) = white-orange
- IDC/FLK50 (9) = IDC/FLK50 (9) = gray
- IDC/FLK50 (22) = IDC/FLK50 (22) = brown-orange
- IDC/FLK50 (23) = IDC/FLK50 (23) = brown-yellow
- IDC/FLK50 (44) = IDC/FLK50 (44) = yellow-white
- IDC/FLK50 (17) = IDC/FLK50 (17) = white-blue
- IDC/FLK50 (24) = IDC/FLK50 (24) = brown-green
- IDC/FLK50 (2) = IDC/FLK50 (2) = brown
- IDC/FLK50 (1) = IDC/FLK50 (1) = black
- IDC/FLK50 (11) = IDC/FLK50 (11) = white-black
- IDC/FLK50 (25) = IDC/FLK50 (25) = brown-blue
- IDC/FLK50 (13) = IDC/FLK50 (13) = white-red
- IDC/FLK50 (45) = IDC/FLK50 (45) = gray-black
- IDC/FLK50 (21) = IDC/FLK50 (21) = brown-red
- IDC/FLK50 (37) = IDC/FLK50 (37) = yellow-black
- IDC/FLK50 (8) = IDC/FLK50 (8) = violet
- IDC/FLK50 (15) = IDC/FLK50 (15) = white-yellow
- IDC/FLK50 (34) = IDC/FLK50 (34) = green-violet
- IDC/FLK50 (33) = IDC/FLK50 (33) = green-blue
- IDC/FLK50 (7) = IDC/FLK50 (7) = blue
- IDC/FLK50 (39) = IDC/FLK50 (39) = yellow-red
- IDC/FLK50 (3) = IDC/FLK50 (3) = red
- IDC/FLK50 (32) = IDC/FLK50 (32) = green-orange
- IDC/FLK50 (20) = IDC/FLK50 (20) = brown-black
- IDC/FLK50 (29) = IDC/FLK50 (29) = green-black
- IDC/FLK50 (16) = IDC/FLK50 (16) = white-green
- IDC/FLK50 (50) = IDC/FLK50 (50) = gray-green
- IDC/FLK50 (48) = IDC/FLK50 (48) = gray-orange
- IDC/FLK50 (12) = IDC/FLK50 (12) = white-brown
- IDC/FLK50 (36) = IDC/FLK50 (36) = green-white
- IDC/FLK50 (42) = IDC/FLK50 (42) = yellow-violet
- IDC/FLK50 (47) = IDC/FLK50 (47) = gray-red
- IDC/FLK50 (31) = IDC/FLK50 (31) = green-red
- IDC/FLK50 (49) = IDC/FLK50 (49) = gray-yellow
- IDC/FLK50 (46) = IDC/FLK50 (46) = gray-brown
Connection data
- Connection in acc. with standard
- IEC 60603-13
- Connection method
- IDC/FLK socket strip
- Connection name
- Field level
- Insertion/withdrawal cycles
- > 50
- Note
- The separate cable end is approximately 0.5 m long (H05V-K 1 mm², black)
- The braided shield is routed to a separate cable end.
- Number of connections
- 1
- Number of positions
- 50
- Pitch
- 2.54 mm
Connection data 2
- Connection in acc. with standard
- IEC 60603-13
- Connection method
- IDC/FLK socket strip
- Connection name
- Controller level
- Insertion/withdrawal cycles
- > 50
- Number of connections
- 1
- Number of positions
- 50
- Pitch
- 2.54 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
Standards and Regulations
- Designation
- Air clearances and creepage distances
- Flame resistance
- UL VW-1
- VDE 0842, Part 332-1-2
- IEC 60332-1-2
- IEC 60332-3-22
- CSA FT-1
- Gasoline resistance
- against occasional splashes
- Insulation
- Functional insulation
- Overvoltage category
- II
- Pollution degree
- 2
- Rated insulation voltage
- 63 V
- Rated surge voltage
- 0.6 kV
- Resistance to oil
- against occasional splashes
- Standards/regulations
- DIN EN 50178
Supported controller
- Controller
- SIEMENS S7-400
- Schneider Electric Modicon TSX QUANTUM
- ALLEN-BRADLEY ControlLogix
- ALLEN-BRADLEY SLC 500
- ALLEN-BRADLEY PLC 5
- HONEYWELL Experion PKS C200
- SIEMENS S7-300 / ET 200 M
- suitable I/O card
- ACO 020
- DDM 390
- 1756-IH16I
- ACI 040
- CPU 313C
- EHC 202
- 1756-M02AE
- 6ES7 432-1HF00-0AB0
- 1746 OW16
- DDI 853
- 6ES7 431-1KF10-0AB0
- 6ES7 431-0HH0-0AB0
- 6ES7 431-1KF00-0AB0
- ACO 130
- 6ES7 422-7BL00-0AB0
- 6ES7 322-1BL00-0AA0
- 1756-IB16I
- 6ES7 331-1KF01-0AB0
- AVO 020
- DDO 353
- CPU 313C-2DP
- CPU 313C-2PtP
- 1756-HSC
- 6ES7 422-1BL00-0AA0
- DAI 353
- 6ES7 431-7QH00-0AB0
- EHC 105
- DAI 453
- ATI 030
- DDI 841
- 6ES7 357-4AH01-0AE0
- CPU 314C-2DP
- 1746 OA16
- 1771 IBN
- 6ES7 332-5HF00-0AB0
- 6ES7 421-7BH01-0AB0
- CPU 314C-2PtP
- TC-ODD 321
- DDI 353
- AVI 030
- TC-IDD 321
- 6ES7 331-7NF00-0AB0
- DAI 340
- 6ES7 350-2AH01-0AE0
- TC-IDX 161
- 6ES7 331-7NF10-0AB0
- 6ES7 331-7PF01-0AB0
- 6ES7 431-1KF20-0AB0
- ACI 030
- 6ES7 421-7DH00-0AA0
- 1756-OB32
- 1756-IB32
- 6ES7 431-7KF10-0AB0
- TC-IDJ 161
- TC-IDK 161
- TC-IAH 161
- 1771 OBN
- 6ES7 421-1BL01-0AA0
- 6ES7 321-1BL00-0AA0
- DAI 440
- 6ES7 323-1BL00-0AA0
- 1756-IF16
- 6ES7 431-7KF00-0AB0
- 1756-IA16I
- 1756-IB16D
- 1756-IF8
- 6ES7 331-7PF11-0AB0
- ARI 030
