Description

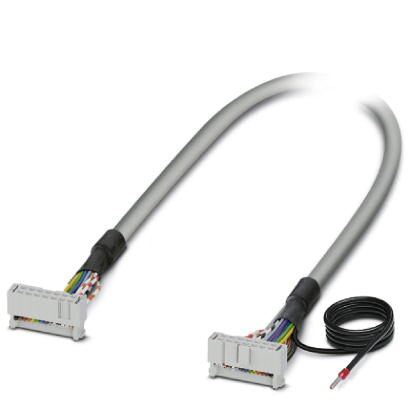

Assembled shielded round cable; connection 1: IDC/FLK socket strip (1x 14-position); connection 2: IDC/FLK socket strip (1x 14-position) (The braided shield is routed to a separate cable end.); cable length: 0.6 mCable - FLK 14/EZ-DR/ 60/KONFEK/S - 2299068
Phoenix Contact 2299068 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 70 °C (fixed installation)
- -10 °C - 70 °C (flexible installation)
- Ambient temperature (storage/transport)
- -40 °C - 80 °C
- Degree of protection
- IP00
- ≥ IP54 (Installation location)
- Maximum altitude
- ≤ 2000 m
Connection data
- Connection in acc. with standard
- IEC 60603-13
- Connection method
- IDC/FLK socket strip
- Connection name
- Field level
- Insertion/withdrawal cycles
- > 50
- Note
- The braided shield is routed to a separate cable end.
- The separate cable end is approximately 0.5 m long (H05V-K 1 mm², black)
- Number of connections
- 1
- Number of positions
- 14
- Pitch
- 2.54 mm
Connection data 2
- Connection in acc. with standard
- IEC 60603-13
- Connection method
- IDC/FLK socket strip
- Connection name
- Controller level
- Insertion/withdrawal cycles
- > 50
- Number of connections
- 1
- Number of positions
- 14
- Pitch
- 2.54 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
Standards and Regulations
- Designation
- Air clearances and creepage distances
- Flame resistance
- IEC 60332-1-2
- VDE 0842, Part 332-1-2
- IEC 60332-3-22
- CSA FT-1
- UL VW-1
- Gasoline resistance
- against occasional splashes
- Insulation
- Functional insulation
- Overvoltage category
- II
- Pollution degree
- 2
- Rated insulation voltage
- 63 V
- Rated surge voltage
- 0.6 kV
- Resistance to oil
- against occasional splashes
- Standards/regulations
- DIN EN 50178
Supported controller
- Controller
- Schneider Electric Modicon TSX QUANTUM
- SIEMENS S7-300 / ET 200 M
- ALLEN-BRADLEY SLC 500
- ALLEN-BRADLEY ControlLogix
- GE-FANUC 90-30
- HONEYWELL Experion PKS C200
- suitable I/O card
- 1746 IG16
- IC693 ALG223
- DDI 853
- 6ES7 331-7PF01-0AB0
- 6ES7 332-5HB01-0AB0
- TC-IAH 061
- 6ES7 321-1BH02-0AA0
- CPU 313C
- 6ES7 321-1BH50-0AA0
- TC-IXL 061
- 1746 IV16
- IC693 ALG221
- IC693 MDL645
- 6ES7 321-1BH10-0AA0
- 6ES7 351-1AH01-0AE0
- CPU 313C-2DP
- 1756-IN16
- IC693 MDL742
- TC-OAV 081
- IC693 MDL733
- 1756-IF6I
- 1756-OF6CI
- TC-IDX 081
- IC693 MDL732
- TC-IXR 061
- 1756-IA8D
- 1756-IR6I
- DDO 353
- 6ES7 350-1AH03-0AE0
- 1746 IN16
- DAI 453
- 1756-IA16
- IC693 MDL646
- 6ES7 334-0KE00-0AB0
- 6ES7 332-7ND02-0AB0
- 6ES7 334-0CE01-0AA0
- IC693 MDL740
- CPU 314C-2PtP
- TC-IDA 161
- DDI 353
- 1746 IA16
- CPU 312C
- DAI 353
- IC693 ALG391
- 1756-IB16
- 1756-IC16
- 1756-OB16E
- IC693 MDL741
- CPU 314C-2DP
- 1746 OB16
- 1756-PLS
- 1746 ITV16
- 6ES7 322-1BH10-0AA0
- 1756-OF8
- 6ES7 357-4AH01-0AE0
- 1746 OG16
- 6ES7 331-7KF02-0AB0
- 6ES7 331-7NF00-0AB0
- 1756-OF4
- 6ES7 355-0VH10-0AE0
- 6ES7 322-1BH01-0AA0
- 6ES7 322-1BL00-0AA0
- CPU 313C-2PtP
- 1746 OV16
- 1746 IB16
- IC693 MDL241
- 6ES7 332-5HD01-0AB0
- 6ES7 321-7BH01-0AB0
- 6ES7 335-7HG01-0AB0
- 6ES7 352-1AH02-0AE0
- TC-OAH 061
- IC693 ALG220
- 6ES7 322-8BF00-0AB0
- 6ES7 353-1AH01-0AE0
- IC693 ALG442
- 6ES7 321-1BL00-0AA0
- TC-OAV 061
- IC693 ALG392
- 6ES7 323-1BH01-0AA0
- IC693 ALG390
- 6ES7 331-7HF01-0AB0
- 6ES7 355-1VH10-0AE0
- 6ES7 323-1BL00-0AA0
- 6ES7 331-7PF11-0AB0
- 6ES7 331-7KB02-0AB0
- IC693 ALG222
- 6ES7 354-1AH01-0AE0
- 6ES7 350-2AH01-0AE0
- 1746 ITB16
- 6ES7 338-4BC01-0AB0
- IC693 MDL634
- 1756-IT6I
