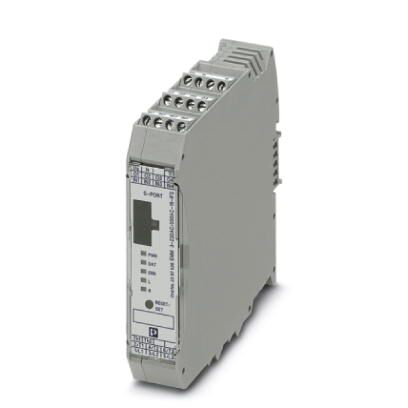

Phoenix Contact 2297536

Ambient conditions

• Ambient temperature (operation)
  • -25 °C - 70 °C
• Ambient temperature (storage/transport)
  • -25 °C - 70 °C
• Degree of protection
  • IP20

Conformance/approvals

• Additional text
  • Motor protection
  • Safe shutdown
• Certificate
  • PTB 10 ATEX 3024
  • NKCR.E140324
• Designation
  • Category (ISO 13849)
  • UL, USA/Canada
  • ATEX
  • Safety Integrity Level (SIL, IEC 61508)
• Identification
  • II (2) G [Ex e] [Ex d] [Ex px]
  • ≤ b
  • ≤ 1
  • 1
  • II (2) D [Ex t] [Ex p]

Connection data

• Conductor cross section AWG
  • 24 - 14
• Conductor cross section flexible
  • 0.2 mm² - 2.5 mm²
• Conductor cross section solid
  • 0.2 mm² - 2.5 mm²
• Connection method
  • Screw connection
• Connection name
  • Control circuits
• Screw thread
  • M3
• Stripping length
  • 8 mm

Connection data 2

• Conductor cross section AWG
  • 24 - 14
• Conductor cross section flexible
  • 0.2 mm² - 2.5 mm²
• Conductor cross section solid
  • 0.2 mm² - 2.5 mm²
• Connection method
  • Screw connection
• Connection name
  • Load circuit
• Screw thread
  • M3
• Stripping length
  • 8 mm

Current measurement

• Basic accuracy
  • typ. 0.5 %
• Measuring via
  • Internal current transformer

Dimensions

• Depth
  • 114.5 mm
• Height
  • 99 mm
• Width
  • 22.5 mm

Environmental Product Compliance

• China RoHS
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
  • Environmentally Friendly Use Period = 50 years
• REACh SVHC
  • Lead 7439-92-1

Input data

• Control supply voltage range
  • 92 V AC - 253 V AC
• Input name
  • Digital inputs (IN1 - IN4)
  • Device supply
• Number of inputs
  • 4 (IN1 - IN4)
• Rated actuating current IC
  • 3.5 mA
• Rated actuating voltage UC
  • 230 V AC
• Rated control circuit supply voltage US
  • 230 V AC
• Rated control supply current IS
  • 10 mA
• Switching threshold
  • 96 V AC ('1' signal)
  • 48 V AC ('0' signal)

Insulation characteristics

• Degree of pollution
  • 2
• Designation
  • Insulation characteristics between the thermistor input and output
  • Insulation characteristics between the input and output circuits
• Insulation
  • Basic insulation (IEC 60947-1)
  • Safe isolation (IEC 60947-1)
• Overvoltage category
  • III
• Rated insulation voltage
  • 500 V
• Rated surge voltage
  • 6 kV

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Output data

• Continuous load current
  • 500 mA
• Nominal output voltage
  • 230 V AC (Relay output)
• Note
  • The meaning of the acknowledgement outputs can be freely parameterized, see user manual
• Number of outputs
  • 4
• Output name
  • Acknowledging contacts O1-O4

Power measurement

• Basic accuracy
  • typ. 2 %
• Power range
  • 14 kW

Standards and Regulations

• Designation
  • Standards/regulations
• Standards/regulations
  • EN 60947-4-2
  • DIN EN 50178
  • EN 60947

Voltage measurement/phase-to-neutral voltage

• Basic accuracy
  • typ. 0.75 %
• Voltage range
  • 0 V AC - 350 V AC (Phase-to-neutral voltage)
