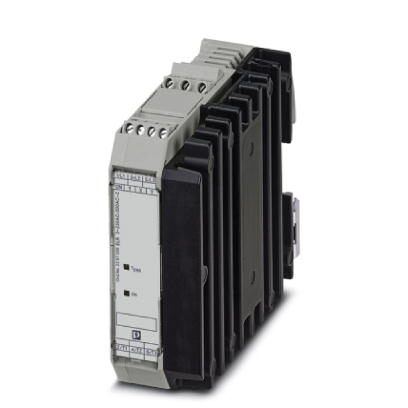

Phoenix Contact 2297206
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Three-phase solid-state contactor with 230 V AC input, 2 A output current, zero voltage switch, optionally with thermal fuseSolid-state contactor - ELR 3-230AC/500AC- 2 - 2297206
Phoenix Contact 2297206 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 70 °C
- Ambient temperature (storage/transport)
- -25 °C - 70 °C
- Degree of protection
- IP20
Conformance/approvals
- Certificate
- NRNT.E172140
- NMFT.E323771
- Designation
- UL approval
Connection data
- Conductor cross section AWG
- 24 - 14
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 2.5 mm²
- Connection method
- Screw connection
- Connection name
- Control circuits
- Screw thread
- M3
- Stripping length
- 8 mm
- Torque
- 0.5 Nm - 0.6 Nm
- 5 lbf-in. - 7 lbf-in.
Connection data 2
- Conductor cross section AWG
- 24 - 14
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 2.5 mm²
- Connection method
- Screw connection
- Connection name
- Load circuit
- Screw thread
- M3
- Stripping length
- 8 mm
- Torque
- 0.5 Nm - 0.6 Nm
- 5 lbf-in. - 7 lbf-in.
Dimensions
- Depth
- 114.5 mm
- Height
- 99 mm
- Width
- 40 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Input data
- Indication
- Red LED
- Input name
- Control input right/left
- Mains frequency
- 50 Hz
- 60 Hz
- Protective circuit
- Surge protection Varistor
- Rated actuating current IC
- 12.5 mA
- Rated actuating voltage UC
- 230 V AC
- Status display
- Yellow LED
- Switching threshold
- 48 V AC ('0' signal)
- 96 V AC ('1' signal)
- Triggering voltage range
- 92 V AC - 253 V AC
- Voltage range with reference to UC
- 0.4 - 1.1
Output data load output
- Leakage current
- 6 mA
- Load current range
- 100 mA - 2 A (see to derating)
- Operating voltage range
- 48 V AC - 575 V AC
- Output name
- AC output
- Rated operating current at AC-51
- 2 A
- Rated operating current at AC-53a
- 2 A
- Rated operating voltage Ue
- 500 V AC
- Residual voltage
- < 1.5 V
- Surge current
- 200 A (t = 10 ms)
- Type of protection
- RCV circuit
Standards and Regulations
- Designation
- Standards/regulations
- Standards/regulations
- DIN EN 50178
- EN 60947
UL data
- FLA
- 2 A (at 500 V, AC Resistance Air Heating)
- 2 A (at 500 V, AC Resistance)
- 2 A (at 500 V, AC General USE)
- SCCR
- 5 kA (20 A RK5 (standard fault) fuse)
