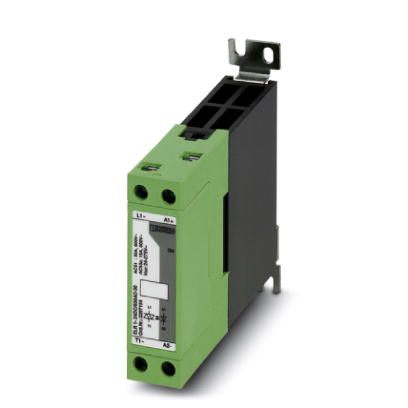

Phoenix Contact 2297154
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Single-phase solid-state contactor, input voltage: 24 V DC, output current: 30 A, zero voltage switchSolid-state contactor 2297154
Phoenix Contact 2297154 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -30 °C - 70 °C
- Ambient temperature (storage/transport)
- -40 °C - 80 °C
Connection data, control circuit
- Conductor cross section AWG
- 20 - 14
- Conductor cross section flexible
- 0.5 mm² - 2.5 mm²
- Conductor cross section solid
- 0.5 mm² - 2.5 mm²
- Connection method
- Screw connection
- Connection name
- Control circuits
- Screw thread
- M4
- Stripping length
- 8 mm
Connection data load circuit
- Conductor cross section AWG
- 20 - 12
- Conductor cross section flexible
- 0.5 mm² - 4 mm²
- Conductor cross section solid
- 0.5 mm² - 4 mm²
- Connection method
- Screw connection
- Connection name
- Load circuit
- Screw thread
- M4
- Stripping length
- 8 mm
Dimensions
- Depth
- 103 mm
- Height
- 103 mm
- Width
- 22.5 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
- REACh SVHC
- Lead 7439-92-1
Input data
- Input name
- Control input
- Operating voltage display
- Green LED
- Rated actuating current IC
- approx. 12 mA
- Rated actuating voltage UC
- 24 V DC
- Switching threshold
- ≥ 4 V DC (“1” signal)
- ≤ 1 V DC (“0” signal)
- Transmission frequency
- 25 Hz
- Triggering voltage range
- 4 V DC - 32 V DC
Output data load output
- Leakage current
- < 3 mA (In off state)
- Load current range
- 150 mA - 30 A (see to derating)
- Operating voltage range
- 42 V AC - 660 V AC
- Output name
- Load output
- Rated operating current at AC-51
- 30 A
- Rated operating current at AC-53a
- 15 A
- Residual voltage
- < 1.6 V
- Surge current
- 400 A (t = 10 ms)
- Type of protection
- RCV circuit
Standards and Regulations
- Connection in acc. with standard
- CUL
- Designation
- Standards/regulations
- Standards/regulations
- EN 61000-4-4
- EN 55011
- EN 61000-4-2
- EN 61000-4-5
- EN 61000-4-6
- EN 61000-4-3
