Phoenix Contact 2289670
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

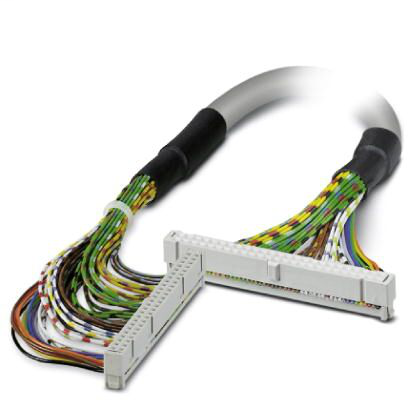

Round cable set; connection 1: IDC/FLK socket strip (1x 50-position); connection 2: IDC/FLK socket strip (1x 50-position); cable length: 9.5 mCable - FLK 50/EZ-DR/ 950/KONFEK - 2289670
Phoenix Contact 2289670 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 70 °C (fixed installation)
- -10 °C - 70 °C (flexible installation)
- Ambient temperature (storage/transport)
- -40 °C - 80 °C
- Degree of protection
- IP00
- ≥ IP54 (Installation location)
- Maximum altitude
- ≤ 2000 m
Color code
- Connector 1 = connector 2 (optional) = wire color
- IDC/FLK50 (20) = IDC/FLK50 (20) = brown-black
- IDC/FLK50 (5) = IDC/FLK50 (5) = yellow
- IDC/FLK50 (49) = IDC/FLK50 (49) = gray-yellow
- IDC/FLK50 (8) = IDC/FLK50 (8) = violet
- IDC/FLK50 (48) = IDC/FLK50 (48) = gray-orange
- IDC/FLK50 (10) = IDC/FLK50 (10) = white
- IDC/FLK50 (40) = IDC/FLK50 (40) = yellow-orange
- IDC/FLK50 (28) = IDC/FLK50 (28) = brown-white
- IDC/FLK50 (17) = IDC/FLK50 (17) = white-blue
- IDC/FLK50 (2) = IDC/FLK50 (2) = brown
- IDC/FLK50 (36) = IDC/FLK50 (36) = green-white
- IDC/FLK50 (46) = IDC/FLK50 (46) = gray-brown
- IDC/FLK50 (39) = IDC/FLK50 (39) = yellow-red
- IDC/FLK50 (18) = IDC/FLK50 (18) = white-violet
- IDC/FLK50 (7) = IDC/FLK50 (7) = blue
- IDC/FLK50 (19) = IDC/FLK50 (19) = white-gray
- IDC/FLK50 (11) = IDC/FLK50 (11) = white-black
- IDC/FLK50 (44) = IDC/FLK50 (44) = yellow-white
- IDC/FLK50 (26) = IDC/FLK50 (26) = brown-violet
- IDC/FLK50 (38) = IDC/FLK50 (38) = yellow-brown
- IDC/FLK50 (41) = IDC/FLK50 (41) = yellow-blue
- IDC/FLK50 (13) = IDC/FLK50 (13) = white-red
- IDC/FLK50 (33) = IDC/FLK50 (33) = green-blue
- IDC/FLK50 (43) = IDC/FLK50 (43) = yellow-gray
- IDC/FLK50 (6) = IDC/FLK50 (6) = green
- IDC/FLK50 (12) = IDC/FLK50 (12) = white-brown
- IDC/FLK50 (42) = IDC/FLK50 (42) = yellow-violet
- IDC/FLK50 (32) = IDC/FLK50 (32) = green-orange
- IDC/FLK50 (16) = IDC/FLK50 (16) = white-green
- IDC/FLK50 (50) = IDC/FLK50 (50) = gray-green
- IDC/FLK50 (34) = IDC/FLK50 (34) = green-violet
- IDC/FLK50 (4) = IDC/FLK50 (4) = orange
- IDC/FLK50 (27) = IDC/FLK50 (27) = brown-gray
- IDC/FLK50 (30) = IDC/FLK50 (30) = green-brown
- IDC/FLK50 (31) = IDC/FLK50 (31) = green-red
- IDC/FLK50 (47) = IDC/FLK50 (47) = gray-red
- IDC/FLK50 (35) = IDC/FLK50 (35) = green-gray
- IDC/FLK50 (21) = IDC/FLK50 (21) = brown-red
- IDC/FLK50 (45) = IDC/FLK50 (45) = gray-black
- IDC/FLK50 (23) = IDC/FLK50 (23) = brown-yellow
- IDC/FLK50 (15) = IDC/FLK50 (15) = white-yellow
- IDC/FLK50 (37) = IDC/FLK50 (37) = yellow-black
- IDC/FLK50 (1) = IDC/FLK50 (1) = black
- IDC/FLK50 (22) = IDC/FLK50 (22) = brown-orange
- IDC/FLK50 (3) = IDC/FLK50 (3) = red
- IDC/FLK50 (25) = IDC/FLK50 (25) = brown-blue
- IDC/FLK50 (29) = IDC/FLK50 (29) = green-black
- IDC/FLK50 (14) = IDC/FLK50 (14) = white-orange
- IDC/FLK50 (9) = IDC/FLK50 (9) = gray
- IDC/FLK50 (24) = IDC/FLK50 (24) = brown-green
Connection data
- Connection in acc. with standard
- IEC 60603-13
- Connection method
- IDC/FLK socket strip
- Connection name
- Field level
- Insertion/withdrawal cycles
- > 50
- Number of connections
- 1
- Number of positions
- 50
- Pitch
- 2.54 mm
Connection data 2
- Connection in acc. with standard
- IEC 60603-13
- Connection method
- IDC/FLK socket strip
- Connection name
- Controller level
- Insertion/withdrawal cycles
- > 50
- Number of connections
- 1
- Number of positions
- 50
- Pitch
- 2.54 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
Standards and Regulations
- Connection in acc. with standard
- CUL
- Designation
- Air clearances and creepage distances
- Flame resistance
- IEC 60332-3-22
- IEC 60332-1-2
- VDE 0842, Part 332-1-2
- UL VW-1
- CSA FT-1
- Gasoline resistance
- against occasional splashes
- Insulation
- Functional insulation
- Overvoltage category
- II
- Pollution degree
- 2
- Rated insulation voltage
- 63 V
- Rated surge voltage
- 0.6 kV
- Resistance to oil
- against occasional splashes
- Standards/regulations
- DIN EN 50178
Supported controller
- Controller
- SIEMENS S7-1500
- ALLEN-BRADLEY PLC 5
- ALLEN-BRADLEY ControlLogix
- SIEMENS S7-300 / ET 200 M
- HONEYWELL Experion PKS C200
- SIEMENS S7-400
- Schneider Electric Modicon TSX QUANTUM
- suitable I/O card
- 1771 IBN
- ACI 030
- DAI 440
- 6ES7 522-1BL00-0AB0
- 6ES7 322-1BL00-0AA0
- 6ES7 421-7DH00-0AA0
- 6ES7 331-1KF01-0AB0
- 6ES7 331-7PF11-0AB0
- ACI 040
- 6ES7 531-7KF00-0AB0
- 6ES7 532-5HF00-0AB0
- 1756-M02AE
- CPU 314C-2PtP
- CPU 313C
- DDI 853
- 1756-IA16I
- 6ES7 322-8BH01-0AB0
- ACO 130
- 6ES7 431-1KF00-0AB0
- DAI 340
- 6ES7 431-7QH00-0AB0
- 6ES7 350-2AH01-0AE0
- 1756-OB32
- EHC 105
- TC-IDJ 161
- TC-IAH 161
- 6ES7 422-1BL00-0AA0
- DDI 353
- 1756-IF8
- ACO 020
- DAI 453
- TC-IDD 321
- TC-ODD 321
- CPU 313C-2DP
- 6ES7 522-1BL01-0AB0
- 1756-IF16
- TC-IDX 161
- AVO 020
- DDO 353
- ARI 030
- ATI 030
- DDM 390
- TC-IDK 161
- 6ES7 521-1BL00-0AB0
- 6ES7 331-7NF10-0AB0
- 6ES7 531-7PF00-0AB0
- 6ES7 331-7NF00-0AB0
- AVI 030
- 1756-IB16D
- DDI 841
- 6ES7 331-7PF01-0AB0
- 6ES7 357-4AH01-0AE0
- EHC 202
- 1756-IB16I
- 6ES7 431-0HH0-0AB0
- 6ES7 421-1BL01-0AA0
- 6ES7 431-1KF10-0AB0
- 6ES7 421-7BH01-0AB0
- 6ES7 431-1KF20-0AB0
- 1756-HSC
- 1756-IH16I
- 6ES7 332-5HF00-0AB0
- CPU 313C-2PtP
- 6ES7 531-7NF00-0AB0
- 1756-IB32
- 6ES7 422-7BL00-0AB0
- 6ES7 432-1HF00-0AB0
- CPU 314C-2DP
- 6ES7 431-7KF00-0AB0
- 1771 OBN
- 6ES7 431-7KF10-0AB0
- 6ES7 323-1BL00-0AA0
- 6ES7 321-1BL00-0AA0
- 6ES7 531-7NF10-0AB0
