Description

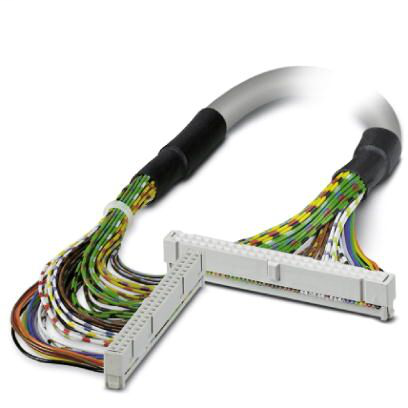

Round cable set; connection 1: IDC/FLK socket strip (1x 50-position); connection 2: IDC/FLK socket strip (1x 50-position); cable length: 6.5 mCable - FLK 50/EZ-DR/ 650/KONFEK - 2289612
Phoenix Contact 2289612 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -10 °C - 70 °C (flexible installation)
- -40 °C - 70 °C (fixed installation)
- Ambient temperature (storage/transport)
- -40 °C - 80 °C
- Degree of protection
- IP00
- ≥ IP54 (Installation location)
- Maximum altitude
- ≤ 2000 m
Color code
- Connector 1 = connector 2 (optional) = wire color
- IDC/FLK50 (5) = IDC/FLK50 (5) = yellow
- IDC/FLK50 (28) = IDC/FLK50 (28) = brown-white
- IDC/FLK50 (19) = IDC/FLK50 (19) = white-gray
- IDC/FLK50 (10) = IDC/FLK50 (10) = white
- IDC/FLK50 (20) = IDC/FLK50 (20) = brown-black
- IDC/FLK50 (21) = IDC/FLK50 (21) = brown-red
- IDC/FLK50 (50) = IDC/FLK50 (50) = gray-green
- IDC/FLK50 (4) = IDC/FLK50 (4) = orange
- IDC/FLK50 (7) = IDC/FLK50 (7) = blue
- IDC/FLK50 (46) = IDC/FLK50 (46) = gray-brown
- IDC/FLK50 (14) = IDC/FLK50 (14) = white-orange
- IDC/FLK50 (30) = IDC/FLK50 (30) = green-brown
- IDC/FLK50 (23) = IDC/FLK50 (23) = brown-yellow
- IDC/FLK50 (17) = IDC/FLK50 (17) = white-blue
- IDC/FLK50 (15) = IDC/FLK50 (15) = white-yellow
- IDC/FLK50 (18) = IDC/FLK50 (18) = white-violet
- IDC/FLK50 (25) = IDC/FLK50 (25) = brown-blue
- IDC/FLK50 (8) = IDC/FLK50 (8) = violet
- IDC/FLK50 (43) = IDC/FLK50 (43) = yellow-gray
- IDC/FLK50 (6) = IDC/FLK50 (6) = green
- IDC/FLK50 (13) = IDC/FLK50 (13) = white-red
- IDC/FLK50 (26) = IDC/FLK50 (26) = brown-violet
- IDC/FLK50 (44) = IDC/FLK50 (44) = yellow-white
- IDC/FLK50 (38) = IDC/FLK50 (38) = yellow-brown
- IDC/FLK50 (49) = IDC/FLK50 (49) = gray-yellow
- IDC/FLK50 (31) = IDC/FLK50 (31) = green-red
- IDC/FLK50 (2) = IDC/FLK50 (2) = brown
- IDC/FLK50 (36) = IDC/FLK50 (36) = green-white
- IDC/FLK50 (32) = IDC/FLK50 (32) = green-orange
- IDC/FLK50 (11) = IDC/FLK50 (11) = white-black
- IDC/FLK50 (39) = IDC/FLK50 (39) = yellow-red
- IDC/FLK50 (9) = IDC/FLK50 (9) = gray
- IDC/FLK50 (16) = IDC/FLK50 (16) = white-green
- IDC/FLK50 (33) = IDC/FLK50 (33) = green-blue
- IDC/FLK50 (40) = IDC/FLK50 (40) = yellow-orange
- IDC/FLK50 (37) = IDC/FLK50 (37) = yellow-black
- IDC/FLK50 (27) = IDC/FLK50 (27) = brown-gray
- IDC/FLK50 (12) = IDC/FLK50 (12) = white-brown
- IDC/FLK50 (3) = IDC/FLK50 (3) = red
- IDC/FLK50 (42) = IDC/FLK50 (42) = yellow-violet
- IDC/FLK50 (41) = IDC/FLK50 (41) = yellow-blue
- IDC/FLK50 (45) = IDC/FLK50 (45) = gray-black
- IDC/FLK50 (47) = IDC/FLK50 (47) = gray-red
- IDC/FLK50 (1) = IDC/FLK50 (1) = black
- IDC/FLK50 (24) = IDC/FLK50 (24) = brown-green
- IDC/FLK50 (34) = IDC/FLK50 (34) = green-violet
- IDC/FLK50 (35) = IDC/FLK50 (35) = green-gray
- IDC/FLK50 (48) = IDC/FLK50 (48) = gray-orange
- IDC/FLK50 (22) = IDC/FLK50 (22) = brown-orange
- IDC/FLK50 (29) = IDC/FLK50 (29) = green-black
Connection data
- Connection in acc. with standard
- IEC 60603-13
- Connection method
- IDC/FLK socket strip
- Connection name
- Field level
- Insertion/withdrawal cycles
- > 50
- Number of connections
- 1
- Number of positions
- 50
- Pitch
- 2.54 mm
Connection data 2
- Connection in acc. with standard
- IEC 60603-13
- Connection method
- IDC/FLK socket strip
- Connection name
- Controller level
- Insertion/withdrawal cycles
- > 50
- Number of connections
- 1
- Number of positions
- 50
- Pitch
- 2.54 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
Standards and Regulations
- Connection in acc. with standard
- CUL
- Designation
- Air clearances and creepage distances
- Flame resistance
- IEC 60332-3-22
- CSA FT-1
- IEC 60332-1-2
- UL VW-1
- VDE 0842, Part 332-1-2
- Gasoline resistance
- against occasional splashes
- Insulation
- Functional insulation
- Overvoltage category
- II
- Pollution degree
- 2
- Rated insulation voltage
- 63 V
- Rated surge voltage
- 0.6 kV
- Resistance to oil
- against occasional splashes
- Standards/regulations
- DIN EN 50178
Supported controller
- Controller
- Schneider Electric Modicon TSX QUANTUM
- ALLEN-BRADLEY ControlLogix
- HONEYWELL Experion PKS C200
- SIEMENS S7-400
- SIEMENS S7-1500
- SIEMENS S7-300 / ET 200 M
- ALLEN-BRADLEY PLC 5
- suitable I/O card
- 6ES7 521-1BL00-0AB0
- CPU 313C-2PtP
- 6ES7 421-7BH01-0AB0
- 6ES7 322-8BH01-0AB0
- TC-IDD 321
- ACI 030
- 6ES7 321-1BL00-0AA0
- 6ES7 421-7DH00-0AA0
- 1756-IF16
- 1756-IH16I
- 6ES7 331-7PF11-0AB0
- ARI 030
- TC-IDX 161
- 6ES7 531-7PF00-0AB0
- TC-IDK 161
- 1771 OBN
- 6ES7 431-7KF10-0AB0
- DDM 390
- DDO 353
- DAI 440
- 6ES7 421-1BL01-0AA0
- 6ES7 357-4AH01-0AE0
- TC-IAH 161
- 6ES7 322-1BL00-0AA0
- 6ES7 331-7NF00-0AB0
- 6ES7 431-7QH00-0AB0
- 6ES7 331-7NF10-0AB0
- CPU 314C-2PtP
- ATI 030
- 6ES7 431-7KF00-0AB0
- 6ES7 532-5HF00-0AB0
- 6ES7 431-1KF20-0AB0
- EHC 202
- DDI 853
- 1756-IB16D
- 6ES7 431-1KF00-0AB0
- DAI 340
- ACO 020
- AVO 020
- ACO 130
- 1756-IF8
- 6ES7 422-7BL00-0AB0
- 1756-IB16I
- TC-ODD 321
- ACI 040
- DDI 353
- CPU 313C
- 6ES7 332-5HF00-0AB0
- 6ES7 431-0HH0-0AB0
- 6ES7 432-1HF00-0AB0
- 6ES7 522-1BL00-0AB0
- 1756-IA16I
- 6ES7 422-1BL00-0AA0
- 6ES7 323-1BL00-0AA0
- 6ES7 331-1KF01-0AB0
- 6ES7 522-1BL01-0AB0
- 6ES7 531-7KF00-0AB0
- CPU 313C-2DP
- AVI 030
- 6ES7 531-7NF00-0AB0
- 1756-OB32
- 1771 IBN
- 6ES7 531-7NF10-0AB0
- 1756-IB32
- DAI 453
- 6ES7 350-2AH01-0AE0
- 6ES7 331-7PF01-0AB0
- CPU 314C-2DP
- DDI 841
- 1756-M02AE
- TC-IDJ 161
- EHC 105
- 6ES7 431-1KF10-0AB0
- 1756-HSC
