Phoenix Contact 2277983
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

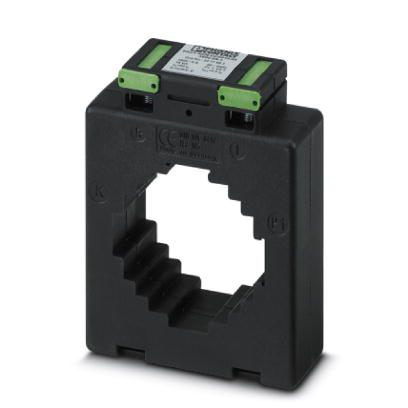

Window-type current transformer, 1,600 A AC primary current; 5 A AC secondary current; accuracy class 1; 15 VA rated powerCurrent transformer 2277983
Phoenix Contact 2277983 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 40 °C
- Ambient temperature (storage/transport)
- -25 °C - 40 °C
Dimensions
- Depth
- 85 mm
- Depth with alternative assembly
- 30 mm
- Height
- 108 mm
- Height with alternative assembly
- 108 mm
- Note on dimensions
- 2
- Primary round conductor (diameter)
- 52 mm
- Primary round conductor (height)
- 10 mm
- 15 mm
- Primary round conductor (width)
- 50 mm
- 60 mm
- Width
- 30 mm
- Width with alternative assembly
- 85 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
- Environmentally Friendly Use Period = 50
Input data
- Number of inputs
- 1
- Primary rated current Ipn
- 0 A - 1600 A
- Rated frequency: Calibrated converter
- 50 Hz
- Rated frequency: Standard converter
- 50 Hz - 60 Hz
- Rated power
- 15 VA
- Rated surge current
- Idyn = 2.5 * Ith
- Secondary rated current Isn
- 5 A AC
- Surge current limitation factor
- FS 5
- Thermal rated continuous current
- Id = 1.2 * In
- Thermal rated short-time current
- Ith = 60 * In
Output data
- Connection method
- Screw connection
Standards and Regulations
- Standards/regulations
- EN 61869
- EN 50178
- UL, USA/Canada
- XODW8.E323953
