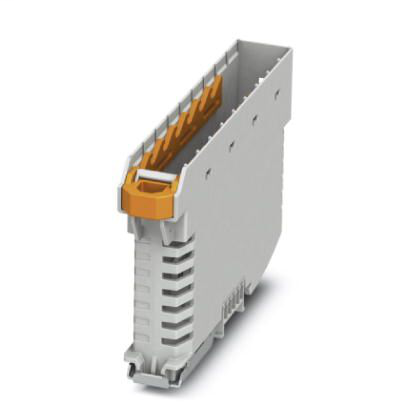

Phoenix Contact 2201961

Ambient conditions

• Ambient temperature (assembly)
  • -5 °C - 100 °C
• Ambient temperature (operation)
  • -40 °C - 105 °C (depending on power dissipation)
• Ambient temperature (storage/transport)
  • -40 °C - 70 °C
• Relative humidity (storage/transport)
  • 80 %

Dimensions

• Depth [ d ]
  • 64.3 mm
• Depth from top edge of DIN rail [ d ]
  • 57.7 mm
• Height [ h ]
  • 109.6 mm
• Width [ w ]
  • 18.9 mm

Environmental Product Compliance

• China RoHS
  • Environmentally friendly use period: unlimited = EFUP-e
  • No hazardous substances above threshold values

General information

• Note
  • Material of contact pads for bus connector, galvanic gold (hard gold)
  • Refer to the data sheet for the range in the download area.
• Type of note
  • Assembly instruction:
  • Recommendation

Item properties

• Brief article description
  • Mounting base housing
• Housing type
  • DIN rail housing
• Max. IP code to attain
  • IP20
• Max. number of positions
  • 28 (pitch: 5 mm)
  • 42 (pitch: 3.45 mm)
• Mounting type
  • DIN rail mounting
• Order No.
  • 2201961
• Type
  • ME-IO 18,8 B/FE 7/9U TBUS 7035
  • Lower housing part, with metal foot catch, with functional ground contact, with 7U Lock and Release system
• Ventilation openings present
  • yes

Material data

• Color (RAL)
  • light gray (7035)
• Flammability rating according to UL 94
  • V0
• Housing material
  • Polyamide

Packaging information

• Denomination packing units
  • Pcs.
• Pieces per package
  • 10

PCB data

• Mounting position
  • Vertical (horizontal DIN rail)
• Number of PCB holders
  • 1
• Type of PCB mount
  • Latching

Standards and regulations

• Flammability rating according to UL 94
  • V0
