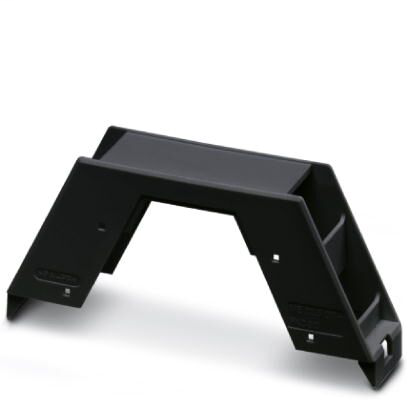

Phoenix Contact 2200838

Ambient conditions

• Ambient temperature (assembly)
  • -5 °C - 100 °C
• Ambient temperature (operation)
  • -40 °C - 105 °C (depending on power dissipation)
• Ambient temperature (storage/transport)
  • -40 °C - 55 °C
• Relative humidity (storage/transport)
  • 80 %

Dimensions

• Depth [ d ]
  • 45.85 mm
• Depth from base support surface [d]
  • 38.5 mm
• Height [ h ]
  • 99 mm
• Width [ w ]
  • 22.6 mm

Environmental Product Compliance

• China RoHS
  • Environmentally friendly use period: unlimited = EFUP-e
  • No hazardous substances above threshold values

General information

• Note
  • Refer to the data sheet for the range in the download area.
  • Material of contact pads for bus connector, galvanic gold (hard gold)
• Type of note
  • Recommendation
  • Assembly instruction:

Item properties

• Brief article description
  • Upper part of housing
• Connection levels
  • 2 (Both sides)
• Housing type
  • DIN rail housing
• Max. IP code to attain
  • IP20
• Max. number of positions
  • 16 (pitch: 5 mm)
• Mounting type
  • Latching with lower housing part
• Order No.
  • 2200838
• Type
  • Upper housing part for PCB terminal blocks with Push-in spring connection
  • ME 22,5 OT-FKDSO BK

Material data

• Color (RAL)
  • black (9005)
• Flammability rating according to UL 94
  • V0
• Housing material
  • Polyamide

Mechanical strength/tumbling barrel

• Height of fall
  • 50 cm
• Number of drop cycles
  • 10
• Specification
  • IEC 60998-1:2002-12

Packaging information

• Denomination packing units
  • Pcs.
• Outer packaging type
  • Carton
• Pieces per package
  • 10
• Type of packaging
  • packed in cardboard

PCB data

• Mounting position
  • Vertical (horizontal DIN rail)
• Number of PCB holders
  • 1
• PCB thickness
  • 1.4 mm - 1.8 mm
• Type of PCB mount
  • Latching

Shock

• Acceleration
  • 15g
• Number of shocks per direction
  • 3
• Pulse shape
  • Half-sine
• Shock duration
  • 11 ms
• Specification
  • IEC 60068-2-27:2008-02
• Test directions
  • X-, Y- and Z-axis (pos. and neg.)

Standards and regulations

• Flammability rating according to UL 94
  • V0

Test for assessing the risk of fire (glow wire)

• Specification
  • DIN EN 60695-2-11 (VDE 0471-2-11):2014-11
• Temperature
  • 850 °C
• Time of exposure
  • 30 s

Thermostability (Ball Thrust Test)

• Force
  • 20 N
• Specification
  • IEC 60695-10-2:2014-02
• Temperature
  • 125 °C
• Test duration
  • 1 h

Vibration test

• Acceleration
  • 2g (58.1 - 150 Hz)
• Amplitude
  • 0.15 mm (10 - 58.1 Hz)
• Frequency
  • 10 - 150 - 10 Hz
• Specification
  • IEC 60068-2-6:2007-12
• Sweep speed
  • 1 octave/min
• Test directions
  • X-, Y- and Z-axis
• Test duration per axis
  • 2.5 h
