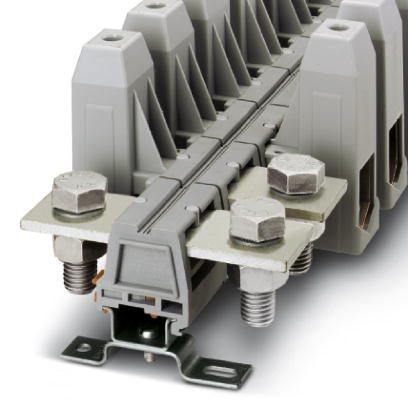

Phoenix Contact 2130143
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Universal terminal block with mixed connection, cross section: 70 - 240 mm², width: 53 mm, color: grayHigh Current Connectors - UHV240-KH/AS - 2130143
Phoenix Contact 2130143 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Connection data
- 2 conductors with same cross section, solid max.
- 95 mm²
- 2 conductors with same cross section, solid min.
- 35 mm²
- 2 conductors with same cross section, stranded max.
- 95 mm²
- 2 conductors with same cross section, stranded min.
- 50 mm²
- Bolt diameter
- 16 mm
- Cable lug connection according to standard
- DIN 46234:1980-03
- DIN 46235:1983-07
- Conductor cross section AWG max.
- 500 kcmil
- Conductor cross section AWG min.
- 2/0
- Conductor cross section flexible max.
- 240 mm²
- Conductor cross section flexible min.
- 70 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.
- 180 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve min.
- 70 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.
- 185 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.
- 70 mm²
- Conductor cross section solid max.
- 240 mm²
- Conductor cross section solid min.
- 70 mm²
- Connection method
- Screw connection
- Bolt connection
- Hole diameter, min.
- 17 mm
- Max. cross section for cable lug connection
- 240 mm²
- Min. cross section for cable lug connection
- 25 mm²
- 50 mm²
- Note
- 2-conductor connection only on terminal sleeve side
- Power rail
- 40 mm x 5 mm
- Screw thread
- M16
- M10
- Stripping length
- 34 mm
- The stripping length depends on the specification provided by the cable lug manufacturer.
- Tightening torque max
- 35 Nm
- 30 Nm
- Tightening torque, min
- 30 Nm
- 25 Nm
- Two conductors with the same cross section stranded, with ferrule and without plastic sleeve, maximum
- 50 mm²
- Two conductors with the same cross section stranded, with ferrule and without plastic sleeve, minimum
- 35 mm²
Dimensions
- Height NS 35/15
- 105.5 mm
- Length
- 126.5 mm
- Width
- 53 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Standards and Regulations
- Connection in acc. with standard
- IEC 60947-7-1
- CSA
- Flammability rating according to UL 94
- V2
