Description

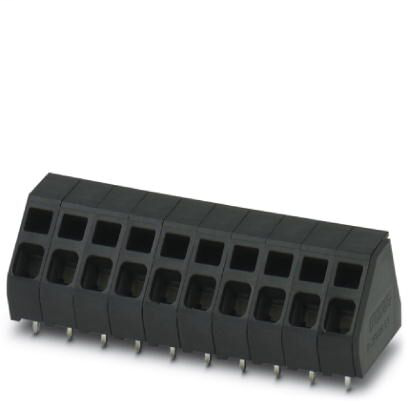

PCB terminal block, nominal current: 24 A, rated voltage (III/2): 320 V, nominal cross section: 2.5 mm², pitch: 5.08 mm, number of positions: 3, connection method: Spring-cage connection, mounting: THR soldering, conductor/PCB connection direction: 45 °, color: black, Pin layout: Linear double pinning, Solder pin [P]: 3.2 mmPCB terminal block - ZFKDSA 2,5-5,08- 3 THT - 1994678
Phoenix Contact 1994678 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Air clearances and creepage distances
- Clearances and creepage distances
- IEC 60664-1:1992-10 + A1:2000-02 + A2:2002-05
- Minimum clearance - inhomogeneous field (II/2)
- 3 mm
- Minimum clearance - inhomogeneous field (III/2)
- 3 mm
- Minimum clearance - inhomogeneous field (III/3)
- 3 mm
- Minimum creepage distance value (II/2)
- 3.2 mm
- Minimum creepage distance value (III/2)
- 3.2 mm
- Minimum creepage distance value (III/3)
- 3.2 mm
- Specification
- IEC 60664-1:1992-10 + A1:2000-02 + A2:2002-05
Ambient conditions
- Ambient temperature (assembly)
- -5 °C - 100 °C
- Ambient temperature (operation)
- -40 °C - 100 °C (Depending on the current carrying capacity/derating curve)
- Ambient temperature (storage/transport)
- -40 °C - 70 °C
Connection capacity
- Conductor cross section AWG / kcmil
- 24 - 12
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve
- 0.25 mm² - 2.5 mm²
- Conductor cross section, flexible, with ferrule, with plastic sleeve
- 0.25 mm² - 1.5 mm²
- Conductor cross section solid
- 0.2 mm² - 4 mm²
- Connection method
- Spring-cage connection
- pluggable
- Yes
- Stripping length
- 7 mm
Dimensions for PCB design
- Hole diameter
- 1.3 mm
Dimensions for the product
- Height [ h ]
- 18.2 mm
- Height (without solder pin)
- 15 mm
- Length [ l ]
- 16.85 mm
- Pin dimensions
- 0.8 x 0.8 mm
- Pitch
- 5.08 mm
- Solder pin [P]
- 3.2 mm
- Width [ w ]
- 15.24 mm
Electrical parameters
- Nominal current
- 24 A
- Nom. voltage
- 320 V
- Rated surge voltage (II/2)
- 4 kV
- Rated surge voltage (III/2)
- 4 kV
- Rated surge voltage (III/3)
- 4 kV
- Rated voltage
- 200 V
- Rated voltage (II/2)
- 320 V
- Rated voltage (III/2)
- 320 V
Electrical tests
- Conductor cross section
- 2.5 mm²
- Rated current
- 24 A
- Rated surge voltage (III/2)
- 4 kV
- Rated voltage (III/2)
- 320 V
Environmental Product Compliance
- China RoHS
- No hazardous substances above threshold values
- Environmentally friendly use period: unlimited = EFUP-e
Item properties
- Brief article description
- PCB terminal block
- Connection method
- Spring-cage connection
- Mounting type
- THR soldering
- Number of connections
- 3
- Number of levels
- 1
- Number of positions
- 3
- Number of potentials
- 3
- Pin layout
- Linear double pinning
- Pitch
- 5.08 mm
- Range of articles
- ZFKDS 2,5-THT
Material data - contact
- Contact material
- Cu alloy
- Metal surface soldering area (top layer)
- Tin (10 - 16 µm Sn)
- Metal surface terminal point (top layer)
- Tin (10 - 16 µm Sn)
- Note
- WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
- Surface characteristics
- Tin-plated
Material data - housing
- CTI according to IEC 60112
- 325
- Flammability rating according to UL 94
- V0
- Housing color
- black (9005)
- Insulating material
- PA
- Insulating material group
- IIIa
Packaging information
- Denomination packing units
- Pcs.
- Outer packaging type
- Dry bag
- Pieces per package
- 50
- Type of packaging
- packed in cardboard
Standards and Regulations
- Connection in acc. with standard
- CUL
- EN-VDE
