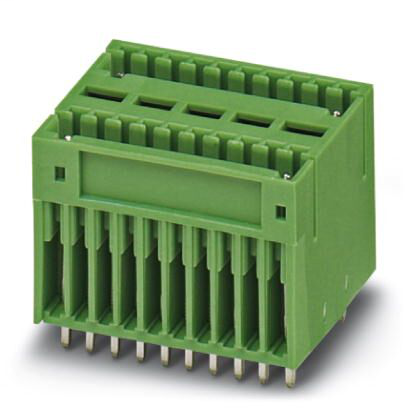

Phoenix Contact 1894985

Air clearances and creepage distances

• Clearances and creepage distances
  • IEC 60664-1:2007-04
• Minimum clearance - inhomogeneous field (II/2)
  • 1.5 mm
• Minimum clearance - inhomogeneous field (III/2)
  • 1.5 mm
• Minimum clearance - inhomogeneous field (III/3)
  • 0.8 mm
• Minimum creepage distance value (II/2)
  • 1.6 mm
• Minimum creepage distance value (III/2)
  • 0.8 mm
• Minimum creepage distance value (III/3)
  • 1.7 mm
• Specification
  • IEC 60664-1:2007-04

Ambient conditions

• Ambient temperature (assembly)
  • -5 °C - 100 °C
• Ambient temperature (operation)
  • -40 °C - 100 °C (dependent on the derating curve)
• Ambient temperature (storage/transport)
  • -40 °C - 70 °C

Climatic tests (D)

• Cold stress
  • -40 °C/2 h
• Corrosive stress
  • 0.2 dm³ SO₂ on 300 dm³/40 °C/1 cycle
• Impulse withstand voltage at sea level
  • 1.75 kV
• Power-frequency withstand voltage
  • 0.84 kV
• Specification
  • ISO 6988:1985-02
• Thermal stress
  • 100 °C/168 h

Dimensions for PCB design

• Hole diameter
  • 1.2 mm

Dimensions for the product

• Height [ h ]
  • 21 mm
• Height (without solder pin)
  • 17.5 mm
• Length [ l ]
  • 25.5 mm
• Pin dimensions
  • 0.8 x 0.8 mm
• Pitch
  • 2.5 mm
• Solder pin [P]
  • 3.5 mm
• Width [ w ]
  • 24.4 mm

Durability tests (B)

• Contact resistance R1
  • 3 mΩ
• Contact resistance R2
  • 4 mΩ
• Impulse withstand voltage at sea level
  • 1.75 kV
• Insertion/withdrawal cycles
  • 25
• Insulation resistance, neighboring positions
  • 10¹¹ Ω
• Power-frequency withstand voltage
  • 0.84 kV
• Specification
  • IEC 60512-9-1:2010-03

Electrical parameters

• Nominal current
  • 4 A
• Nom. voltage
  • 160 V
• Rated surge voltage (II/2)
  • 2.5 kV
• Rated surge voltage (III/2)
  • 2.5 kV
• Rated surge voltage (III/3)
  • 1.5 kV
• Rated voltage
  • 80 V
• Rated voltage (II/2)
  • 320 V
• Rated voltage (III/2)
  • 160 V

Environmental and durability tests (E)

• Result, degree of protection, IP code
  • Finger safety with IP20 test finger
• Specification
  • IEC 61984:2008-10

Environmental Product Compliance

• China RoHS
  • Environmentally friendly use period: unlimited = EFUP-e
  • No hazardous substances above threshold values

Item properties

• Brief article description
  • Feed-through header
• Locking
  • without
• Mounting type
  • Wave soldering
• Number of connections
  • 18
• Number of levels
  • 2
• Number of positions
  • 9
• Number of potentials
  • 18
• Pin layout
  • Linear pinning
• Pitch
  • 2.5 mm
• Plug-in system
  • MICRO COMBICON - FK-MC 0,5
• Range of articles
  • MCDV 0,5/..-G1
• Type of contact
  • Male connector

Material data - contact

• Contact material
  • Cu alloy
• Metal surface contact area (middle layer)
  • Nickel (1 - 3 µm Ni),
• Metal surface contact area (top layer)
  • Tin (3 - 5 µm Sn)
• Metal surface soldering area (middle layer)
  • Nickel (1 - 3 µm Ni)
• Metal surface soldering area (top layer)
  • Tin (3 - 5 µm Sn)
• Note
  • WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
• Surface characteristics
  • Tin-plated

Material data - housing

• CTI according to IEC 60112
  • 600
• Flammability rating according to UL 94
  • V0
• Glow wire flammability index GWFI according to EN 60695-2-12
  • 850
• Glow wire ignition temperature GWIT according to EN 60695-2-13
  • 775
• Housing color
  • green (6021)
• Insulating material
  • PA
• Insulating material group
  • I
• Temperature for the ball pressure test according to EN 60695-10-2
  • 125 °C

Mechanical tests (A)

• Contact holder in insert requirements >20 N
  • Test passed
• Insertion strength per pos. approx.
  • 7 N
• Polarization when inserted requirement >20 N
  • Test passed
• Test specification
  • IEC 61984
• Withdraw strength per pos. approx.
  • 6 N

Packaging information

• Denomination packing units
  • Pcs.
• Pieces per package
  • 50
• Type of packaging
  • packed in cardboard

Standards and Regulations

• Connection in acc. with standard
  • CUL
  • EN-VDE
• Flammability rating according to UL 94
  • V0

Vibration test

• Acceleration
  • 5 g (60.1 - 150 Hz)
• Amplitude
  • 0.35 mm (10 - 60.1 Hz)
• Frequency
  • 10 - 150 - 10 Hz
• Result
  • Test passed
• Specification
  • IEC 60068-2-6:2007-12
• Sweep speed
  • 1 octave/min
• Test duration per axis
  • 2.5 h
