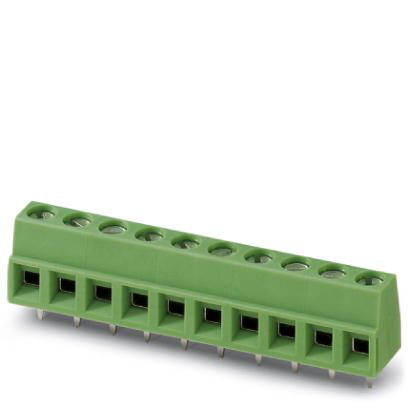

Phoenix Contact 1871966

Connection capacity

• Connection method
  • Screw connection with tension sleeve

Dimensions for PCB design

• Hole diameter
  • 1.3 mm

Dimensions for the product

• Height [ h ]
  • 18.5 mm
• Height (without solder pin)
  • 15 mm
• Length [ l ]
  • 9.5 mm
• Pitch
  • 5.08 mm
• Solder pin [P]
  • 3.5 mm
• Width [ w ]
  • 10.16 mm

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 50 years
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
• REACh SVHC
  • Lead 7439-92-1

General product information

• Note
  • For safe conductor connection, always adhere to a defined tightening torque. Particularly in the case of PCB terminal blocks with two or three positions, the individual solder pin for each contact point cannot compensate for this. That is why the terminal blocks must be supported during conductor connection (held with one hand, support on the housing).
• Type of note
  • Note on application

Item properties

• Brief article description
  • PCB terminal block
• Connection method
  • Screw connection with tension sleeve
• Drive form screw head
  • Slotted (L)
• Mounting type
  • Wave soldering
• Number of connections
  • 2
• Number of levels
  • 1
• Number of positions
  • 2
• Number of potentials
  • 2
• Pin layout
  • Linear pinning
• Pitch
  • 5.08 mm
• Range of articles
  • MKDSNV 1,5

Material data - contact

• Contact material
  • Cu alloy
• Metal surface soldering area (middle layer)
  • Nickel (2 - 3 µm Ni)
• Metal surface soldering area (top layer)
  • Tin (5 - 7 µm Sn)
• Metal surface terminal point (middle layer)
  • Nickel (2 - 3 µm Ni)
• Metal surface terminal point (top layer)
  • Tin (5 - 7 µm Sn)
• Note
  • WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201

Material data - housing

• CTI according to IEC 60112
  • 600
• Flammability rating according to UL 94
  • V0
• Glow wire flammability index GWFI according to EN 60695-2-12
  • 850
• Glow wire ignition temperature GWIT according to EN 60695-2-13
  • 775
• Housing color
  • green (6021)
• Insulating material
  • PA
• Insulating material group
  • I
• Temperature for the ball pressure test according to EN 60695-10-2
  • 125 °C

Packaging information

• Denomination packing units
  • Pcs.
• Pieces per package
  • 50
• Type of packaging
  • packed in cardboard

Processing notes

• Process
  • Wave soldering
• Specification
  • Following IEC 61760-1:2006-04
  • Following IEC 60068-2-54:2006-04
