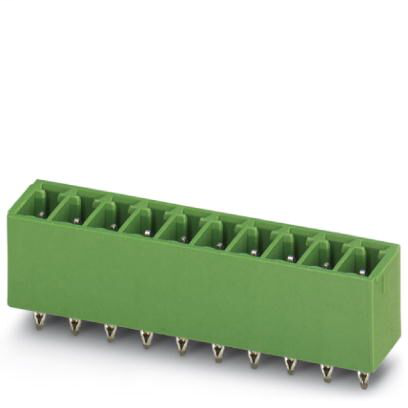

Phoenix Contact 1860676
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
PCB headers, nominal current: 8 A, rated voltage (III/2): 160 V, nominal cross section: 1.5 mm², number of positions: 5, pitch: 3.81 mm, color: green, contact surface: Tin, mounting: Press-in technology, pin layout: Linear pinning, solder pin [P]: 3.8 mmFeed-through header - EMCV 1,5/ 5-G-3,81 - 1860676
Phoenix Contact 1860676 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Dimensions for PCB design
- Hole diameter
- 1.45 mm
Dimensions for the product
- Height [ h ]
- 13 mm
- Height (without solder pin)
- 10 mm
- Length [ l ]
- 7.25 mm
- Pin dimensions
- 0.8 x 0.8 mm
- Pitch
- 3.81 mm
- Solder pin [P]
- 3.8 mm
- Width [ w ]
- 20.44 mm
Electrical parameters
- Nominal current
- 8 A
- Nom. voltage
- 160 V
- Rated surge voltage (II/2)
- 2.5 kV
- Rated surge voltage (III/2)
- 2.5 kV
- Rated surge voltage (III/3)
- 2.5 kV
- Rated voltage
- 160 V
- Rated voltage (II/2)
- 250 V
- Rated voltage (III/2)
- 160 V
Environmental Product Compliance
- China RoHS
- Environmentally friendly use period: unlimited = EFUP-e
- No hazardous substances above threshold values
Item properties
- Brief article description
- Feed-through header
- Locking
- without
- Mounting type
- Press-in technology
- Number of connections
- 5
- Number of levels
- 1
- Number of positions
- 5
- Number of potentials
- 5
- Pin layout
- Linear pinning
- Pitch
- 3.81 mm
- Plug-in system
- MINI COMBICON
- Range of articles
- EMCV 1,5/..-G
- Type of contact
- Male connector
Material data - contact
- Contact material
- Cu alloy
- Metal surface contact area (middle layer)
- Nickel (2 - 3 µm Ni),
- Metal surface contact area (top layer)
- Tin (1 - 2 µm Sn)
- Metal surface soldering area (middle layer)
- Nickel (2 - 3 µm Ni)
- Metal surface soldering area (top layer)
- Tin (1 - 2 µm Sn)
- Note
- WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Material data - housing
- CTI according to IEC 60112
- 225
- Flammability rating according to UL 94
- V0
- Housing color
- green (6021)
- Insulating material
- PBT
- Insulating material group
- IIIa
Packaging information
- Denomination packing units
- Pcs.
- Pieces per package
- 50
- Type of packaging
- packed in cardboard
Standards and Regulations
- Connection in acc. with standard
- CUL
- EN-VDE
- Flammability rating according to UL 94
- V0
