Description

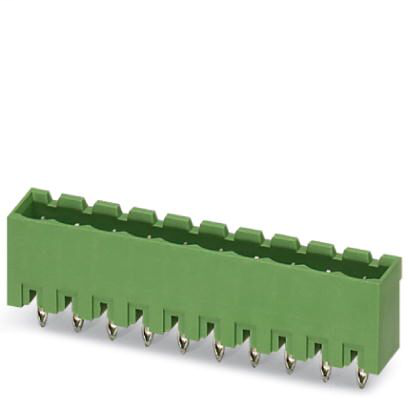

PCB headers, nominal current: 12 A, rated voltage (III/2): 320 V, nominal cross section: 2.5 mm², number of positions: 4, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Press-in technology, pin layout: Linear pinning, solder pin [P]: 3.9 mmFeed-through header - EMSTBVA 2,5/ 4-G-5,08 - 1859535
Phoenix Contact 1859535 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Air clearances and creepage distances
- Minimum clearance - inhomogeneous field (III/2)
- 3 mm
- Minimum creepage distance value (III/2)
- 3 mm
Ambient conditions
- Ambient temperature (assembly)
- -5 °C - 100 °C
- Ambient temperature (operation)
- -40 °C - 100 °C (dependent on the derating curve)
- Ambient temperature (storage/transport)
- -40 °C - 70 °C
Climatic tests (D)
- Cold stress
- -40 °C/2 h
- Corrosive stress
- 0.2 dm³ SO₂ on 300 dm³/40 °C/1 cycle
- Power-frequency withstand voltage
- 2.21 kV
- Specification
- DIN VDE 0627:1993-05
- Thermal stress
- 100 °C/168 h
Dimensions for PCB design
- Hole diameter
- 1.6 mm
Dimensions for the product
- Height [ h ]
- 15.9 mm
- Height (without solder pin)
- 12 mm
- Length [ l ]
- 8.6 mm
- Pitch
- 5.08 mm
- Solder pin [P]
- 3.9 mm
- Width [ w ]
- 22.32 mm
Durability tests (B)
- Contact resistance R1
- 1.1 mΩ
- Contact resistance R2
- 1.5 mΩ
- Impulse withstand voltage at sea level
- 4.8 kV
- Insertion/withdrawal cycles
- 100
- Insulation resistance, neighboring positions
- > 8 TΩ
- Power-frequency withstand voltage
- 2.21 kV
- Specification
- DIN VDE 0627:1993-05
Electrical parameters
- Nominal current
- 12 A
- Nom. voltage
- 320 V
- Rated surge voltage (II/2)
- 4 kV
- Rated surge voltage (III/2)
- 4 kV
- Rated surge voltage (III/3)
- 4 kV
- Rated voltage
- 200 V
- Rated voltage (II/2)
- 320 V
- Rated voltage (III/2)
- 320 V
Environmental and durability tests (E)
- Result, degree of protection, IP code
- Finger safety with IP20 test finger
- Specification
- IEC 61984:2008-10
Environmental Product Compliance
- China RoHS
- No hazardous substances above threshold values
- Environmentally friendly use period: unlimited = EFUP-e
Item properties
- Brief article description
- Feed-through header
- Locking
- without
- Mounting type
- Press-in technology
- Number of connections
- 4
- Number of levels
- 1
- Number of positions
- 4
- Number of potentials
- 4
- Pin layout
- Linear pinning
- Pitch
- 5.08 mm
- Plug-in system
- CLASSIC COMBICON
- Range of articles
- EMSTBVA 2,5/..-G
- Type of contact
- Male connector
Material data - contact
- Contact material
- Cu alloy
- Metal surface contact area (middle layer)
- Nickel (2 - 3 µm Ni),
- Metal surface contact area (top layer)
- Tin (1 - 2 µm Sn)
- Metal surface soldering area (middle layer)
- Nickel (2 - 3 µm Ni)
- Metal surface soldering area (top layer)
- Tin (1 - 2 µm Sn)
- Note
- WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
- Surface characteristics
- Tin-plated
Material data - housing
- CTI according to IEC 60112
- 225
- Flammability rating according to UL 94
- V0
- Housing color
- green (6021)
- Insulating material
- PBT
- Insulating material group
- IIIa
Mechanical tests (A)
- Insertion strength per pos. approx.
- 5 N
- Test specification
- DIN VDE 0627 (in parts)
- Withdraw strength per pos. approx.
- 4 N
Packaging information
- Denomination packing units
- Pcs.
- Pieces per package
- 50
- Type of packaging
- packed in cardboard
Standards and Regulations
- Connection in acc. with standard
- EN-VDE
- CUL
- Flammability rating according to UL 94
- V0
Vibration test
- Acceleration
- 5 g (60.1 - 150 Hz)
- Amplitude
- 0.35 mm (10 - 60.1 Hz)
- Frequency
- 10 - 150 - 10 Hz
- Result
- Test passed
- Specification
- IEC 60068-2-6:1982 + AMD 2:1985
- Sweep speed
- 1 octave/min
- Test duration per axis
- 2.5 h
