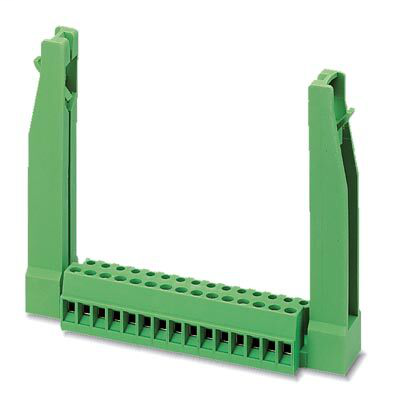

Phoenix Contact 1824379
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Direct plug-in block, nominal current: 12 A, rated voltage (III/2): 320 V, nominal cross section: 2.5 mm², number of positions: 4, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, color: green, contact surface: Tin, mounting: Direct mountingPrinted-circuit board connector - MSTBU 2,5/ 4-ST-5,08-FL - 1824379
Phoenix Contact 1824379 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Connection capacity
- 2 conductors with same cross section, flexible
- 0.2 mm² - 1.5 mm²
- 2 conductors with same cross section, flexible, with ferrule without plastic sleeve
- 0.25 mm² - 1 mm²
- 2 conductors with same cross section, solid
- 0.2 mm² - 1 mm²
- 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve
- 0.5 mm² - 1 mm²
- Conductor cross section AWG / kcmil
- 24 - 12
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve
- 0.25 mm² - 2.5 mm²
- Conductor cross section, flexible, with ferrule, with plastic sleeve
- 0.25 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 2.5 mm²
- Connection method
- Screw connection with tension sleeve
- pluggable
- Yes
- Stripping length
- 7 mm
- Torque
- 0.5 Nm - 0.6 Nm
Dimensions for the product
- Height (without solder pin)
- 17 mm
- Pitch
- 5.08 mm
Electrical parameters
- Nominal current
- 12 A
- Nom. voltage
- 320 V
- Rated surge voltage (II/2)
- 4 kV
- Rated surge voltage (III/2)
- 4 kV
- Rated surge voltage (III/3)
- 4 kV
- Rated voltage
- 250 V
- Rated voltage (II/2)
- 630 V
- Rated voltage (III/2)
- 320 V
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
General product information
- Note
- In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load.
Item properties
- Brief article description
- Printed-circuit board connector
- Connection method
- Screw connection with tension sleeve
- Locking
- without
- Mounting type
- Direct mounting
- Number of connections
- 4
- Number of levels
- 1
- Number of positions
- 4
- Number of potentials
- 4
- Pitch
- 5.08 mm
- Plug-in system
- CLASSIC COMBICON
- Range of articles
- MSTBU 2,5/..-ST -FL
- Screw thread
- M3
- Type of contact
- Male connector
Material data - contact
- Contact material
- Cu alloy
- Metal surface contact area (top layer)
- Tin (4 - 8 µm Sn)
- Metal surface terminal point (top layer)
- Tin (4 - 8 µm Sn)
- Note
- WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
- Surface characteristics
- hot-dip tin-plated
Material data - housing
- CTI according to IEC 60112
- 600
- Flammability rating according to UL 94
- V0
- Glow wire flammability index GWFI according to EN 60695-2-12
- 850
- Glow wire ignition temperature GWIT according to EN 60695-2-13
- 775
- Housing color
- green (6021)
- Insulating material
- PA
- Insulating material group
- I
- Temperature for the ball pressure test according to EN 60695-10-2
- 125 °C
Packaging information
- Denomination packing units
- Pcs.
- Pieces per package
- 50
- Type of packaging
- packed in cardboard
