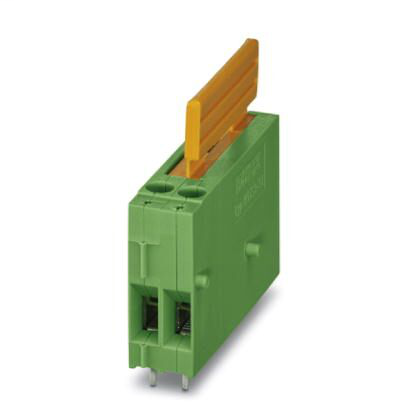

Phoenix Contact 1780196
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
PCB terminal block, nominal current: 6.3 A, rated voltage (III/2): 320 V, nominal cross section: 2.5 mm², pitch: 5.08 mm, number of positions: 1, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear double pinning, Solder pin [P]: 3.5 mm. The article can be aligned to create different nos. of positions! The current is determined by the fuse used. The voltage is determined by the LED used.PCB terminal block - KDS 3-SILED 24 - 1780196
Phoenix Contact 1780196 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Connection data
- 2 conductors with same cross section, solid max.
- 1 mm²
- 2 conductors with same cross section, solid min.
- 0.2 mm²
- 2 conductors with same cross section, stranded max.
- 1 mm²
- 2 conductors with same cross section, stranded min.
- 0.2 mm²
- Conductor cross section AWG max.
- 12
- Conductor cross section AWG min.
- 24
- Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, maximum
- 1 mm²
- Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, minimum
- 0.5 mm²
- Two conductors with the same cross section stranded, with ferrule and without plastic sleeve, maximum
- 0.75 mm²
- Two conductors with the same cross section stranded, with ferrule and without plastic sleeve, minimum
- 0.25 mm²
Dimensions
- Height
- 41 mm
- Height [ h ]
- 40.5 mm
- Hole diameter
- 1.4 mm
- Length [ l ]
- 27 mm
- Pitch
- 5.08 mm
- Solder pin [P]
- 3.5 mm
- Width [ w ]
- 5.08 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Standards and Regulations
- Connection in acc. with standard
- UL
- EN-VDE
