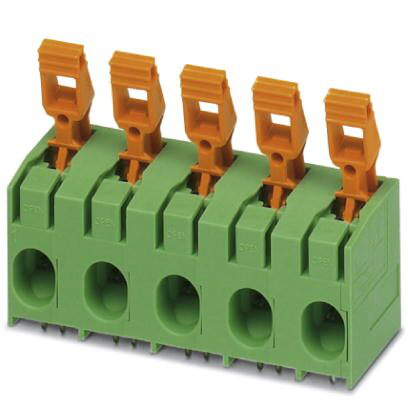

Phoenix Contact 1770571

Air clearances and creepage distances

• Clearances and creepage distances
  • IEC 60664-1:2007-04
• Minimum clearance - inhomogeneous field (II/2)
  • 5.5 mm
• Minimum clearance - inhomogeneous field (III/2)
  • 8 mm
• Minimum clearance - inhomogeneous field (III/3)
  • 8 mm
• Minimum creepage distance value (II/2)
  • 5.5 mm
• Minimum creepage distance value (III/2)
  • 8 mm
• Minimum creepage distance value (III/3)
  • 12.5 mm
• Specification
  • IEC 60664-1:2007-04

Ambient conditions

• Ambient temperature (assembly)
  • -5 °C - 100 °C
• Ambient temperature (operation)
  • -40 °C - 100 °C (Depending on the current carrying capacity/derating curve)
• Ambient temperature (storage/transport)
  • -40 °C - 70 °C

Connection capacity

• 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve
  • 0.75 mm² - 4 mm²
• Conductor cross section AWG / kcmil
  • 18 - 4
• Conductor cross section flexible
  • 0.75 mm² - 25 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve
  • 0.75 mm² - 16 mm²
• Conductor cross section, flexible, with ferrule, with plastic sleeve
  • 0.75 mm² - 10 mm²
• Conductor cross section solid
  • 0.75 mm² - 16 mm²
• Connection method
  • Push-lock spring connection
• Stripping length
  • 18 mm

Current carrying capacity / derating curves

• Specification
  • IEC 60947-7-4

Dimensions for PCB design

• Hole diameter
  • 1.6 mm
• Pin spacing
  • 12.5 mm

Dimensions for the product

• Height [ h ]
  • 29 mm
• Height (without solder pin)
  • 33.5 mm
• Length [ l ]
  • 30.5 mm
• Pin dimensions
  • 1.2 x 1.2 mm
• Pin spacing
  • 12.5 mm
• Pitch
  • 15 mm
• Solder pin [P]
  • 4.5 mm
• Width [ w ]
  • 86.4 mm

Electrical parameters

• Nominal current
  • 76 A
• Nom. voltage
  • 1000 V
• Rated surge voltage (II/2)
  • 8 kV
• Rated surge voltage (III/2)
  • 8 kV
• Rated surge voltage (III/3)
  • 8 kV
• Rated voltage
  • 1000 V
• Rated voltage (II/2)
  • 1000 V
• Rated voltage (III/2)
  • 1000 V

Electrical tests

• Conductor cross section
  • 25 mm²
• Rated current
  • 76 A
• Rated surge voltage (III/2)
  • 8 kV
• Rated voltage (III/2)
  • 1000 V

Environmental Product Compliance

• China RoHS
  • Environmentally friendly use period: unlimited = EFUP-e
  • No hazardous substances above threshold values

Item properties

• Brief article description
  • PCB terminal block
• Connection method
  • Push-lock spring connection
• Mounting type
  • Wave soldering
• Number of connections
  • 6
• Number of levels
  • 1
• Number of positions
  • 6
• Number of potentials
  • 6
• Pin layout
  • Linear double pinning
• Pitch
  • 15 mm
• Range of articles
  • PLH 16/

Material data - contact

• Contact material
  • Cu alloy
• Metal surface soldering area (top layer)
  • Tin (10 - 16 µm Sn)
• Metal surface terminal point (top layer)
  • Tin (10 - 16 µm Sn)
• Note
  • WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
• Surface characteristics
  • Tin-plated

Material data - housing

• CTI according to IEC 60112
  • 600
• Flammability rating according to UL 94
  • V0
• Glow wire flammability index GWFI according to EN 60695-2-12
  • 850
• Glow wire ignition temperature GWIT according to EN 60695-2-13
  • 775
• Housing color
  • green (6021)
• Insulating material
  • PA
• Insulating material group
  • I
• Temperature for the ball pressure test according to EN 60695-10-2
  • 125 °C

Packaging information

• Denomination packing units
  • Pcs.
• Pieces per package
  • 25
• Type of packaging
  • packed in cardboard

Pull-out test

• Conductor cross section / conductor type / tensile force
  • 16 mm² / stranded / > 100 N
  • 0.75 mm² / solid / > 30 N
  • 10 mm² / flexible with ferrule / > 90 N
  • 0.75 mm² / flexible / > 30 N
  • 16 mm² / flexible / > 100 N
• Pull-out test
  • Test passed
  • IEC 60999-1:1999-11

Standards and Regulations

• Connection in acc. with standard
  • UL
• Flammability rating according to UL 94
  • V0

Temperature-rise test

• Result
  • Test passed
• Specification
  • IEC 60947-7-4:2013-08

Termination and connection method

• Test for conductor damage and slackening
  • IEC 60999-1:1999-11
  • Test passed
• Test – repeated connection and release
  • IEC 60999-1:1999-11
  • Test passed

Vibration test

• Amplitude
  • 0.35 mm (10 - 60.1 Hz)
• Frequency
  • 10 - 150 - 10 Hz
• Result
  • Test passed
• Specification
  • IEC 60068-2-6:2007-12
• Sweep speed
  • 1 octave/min
• Test duration per axis
  • 2.5 h
