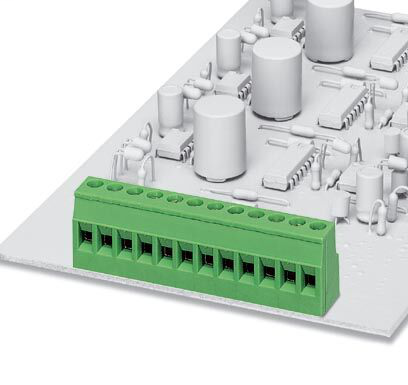

Phoenix Contact 1730638
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
PCB terminal block, nominal current: 12 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², pitch: 5.08 mm, number of positions: 4, connection method: Screw connection with tension sleeve, mounting: Press-in technology, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.75 mmPCB terminal block - EMKDS 2,5/ 4-5,08 - 1730638
Phoenix Contact 1730638 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Connection capacity
- 2 conductors with same cross section, flexible
- 0.14 mm² - 0.75 mm²
- 2 conductors with same cross section, flexible, with ferrule without plastic sleeve
- 0.25 mm² - 0.5 mm²
- 2 conductors with same cross section, solid
- 0.14 mm² - 0.75 mm²
- 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve
- 0.5 mm² - 1.5 mm²
- Conductor cross section AWG / kcmil
- 26 - 16
- Conductor cross section flexible
- 0.14 mm² - 2.5 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve
- 0.25 mm² - 2.5 mm²
- Conductor cross section, flexible, with ferrule, with plastic sleeve
- 0.25 mm² - 1.5 mm²
- Conductor cross section solid
- 0.14 mm² - 2.5 mm²
- Connection method
- Screw connection with tension sleeve
- pluggable
- no
- Stripping length
- 8 mm
- Torque
- 0.5 Nm - 0.6 Nm
Dimensions for PCB design
- Hole diameter
- 1.8 mm
Dimensions for the product
- Height [ h ]
- 21.75 mm
- Height (without solder pin)
- 18 mm
- Length [ l ]
- 11.62 mm
- Pin dimensions
- 1.5 x 0.8 mm
- Pitch
- 5.08 mm
- Solder pin [P]
- 3.75 mm
- Width [ w ]
- 21.5 mm
Electrical parameters
- Nominal current
- 12 A
- Nom. voltage
- 400 V
- Rated surge voltage (II/2)
- 2.5 kV
- Rated surge voltage (III/2)
- 2.5 kV
- Rated surge voltage (III/3)
- 2.5 kV
- Rated voltage
- 250 V
- Rated voltage (II/2)
- 630 V
- Rated voltage (III/2)
- 400 V
Electrical tests
- Conductor cross section
- 2.5 mm²
- Rated current
- 12 A
- Rated surge voltage (III/2)
- 2.5 kV
- Rated voltage (III/2)
- 400 V
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Item properties
- Brief article description
- PCB terminal block
- Connection method
- Screw connection with tension sleeve
- Drive form screw head
- Slotted (L)
- Mounting type
- Press-in technology
- Number of connections
- 4
- Number of levels
- 1
- Number of positions
- 4
- Number of potentials
- 4
- Pin layout
- Linear pinning
- Pitch
- 5.08 mm
- Range of articles
- EMKDS(V) 2,5
- Screw thread
- M3
Material data - contact
- Contact material
- Cu alloy
- Metal surface soldering area (middle layer)
- Nickel (2 - 3 µm Ni)
- Metal surface soldering area (top layer)
- Tin (1 - 2 µm Sn)
- Metal surface terminal point (middle layer)
- Nickel (2 - 3 µm Ni)
- Metal surface terminal point (top layer)
- Tin (1 - 2 µm Sn)
- Note
- WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Material data - housing
- CTI according to IEC 60112
- 600
- Flammability rating according to UL 94
- V0
- Glow wire flammability index GWFI according to EN 60695-2-12
- 850
- Glow wire ignition temperature GWIT according to EN 60695-2-13
- 775
- Housing color
- green (6021)
- Insulating material
- PA
- Insulating material group
- I
- Temperature for the ball pressure test according to EN 60695-10-2
- 125 °C
Packaging information
- Denomination packing units
- Pcs.
- Pieces per package
- 50
- Type of packaging
- packed in cardboard
Standards and Regulations
- Connection in acc. with standard
- EN-VDE
- CSA
- Flammability rating according to UL 94
- V0
