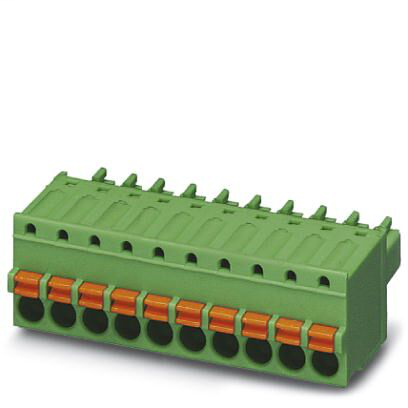

Phoenix Contact 1702602

Air clearances and creepage distances

• Clearances and creepage distances
  • IEC 60664-1:2007-04
• Minimum clearance - inhomogeneous field (II/2)
  • 1.5 mm
• Minimum clearance - inhomogeneous field (III/2)
  • 1.5 mm
• Minimum clearance - inhomogeneous field (III/3)
  • 1.5 mm
• Minimum creepage distance value (II/2)
  • 1.6 mm
• Minimum creepage distance value (III/2)
  • 1.5 mm
• Minimum creepage distance value (III/3)
  • 2 mm
• Specification
  • IEC 60664-1:2007-04

Ambient conditions

• Ambient temperature (assembly)
  • -5 °C - 100 °C
• Ambient temperature (operation)
  • -40 °C - 100 °C (dependent on the derating curve)
• Ambient temperature (storage/transport)
  • -40 °C - 70 °C

Climatic tests (D)

• Cold stress
  • -40 °C/2 h
• Corrosive stress
  • 1.0 dm³ SO₂ on 300 dm³/40 °C/3 cycles
• Impulse withstand voltage at sea level
  • 2.95 kV
• Power-frequency withstand voltage
  • 1.39 kV
• Specification
  • DIN 50018:2013-05
• Thermal stress
  • 100 °C/168 h

Connection capacity

• Conductor cross section AWG / kcmil
  • 26 - 16
• Conductor cross section flexible
  • 0.14 mm² - 1.5 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve
  • 0.25 mm² - 1.5 mm²
• Conductor cross section, flexible, with ferrule, with plastic sleeve
  • 0.25 mm² - 0.75 mm²
• Conductor cross section solid
  • 0.14 mm² - 1.5 mm²
• Connection method
  • Push-in spring connection
• Cylindrical gauge a x b / diameter
  • 2.4 mm x 1.5 mm / -
• pluggable
  • Yes
• Stripping length
  • 9 mm

Current carrying capacity / derating curves

• Specification
  • IEC 61984

Dimensions for the product

• Height [ h ]
  • 12.4 mm
• Height (without solder pin)
  • 12.4 mm
• Length [ l ]
  • 21 mm
• Pitch
  • 3.81 mm
• Width [ w ]
  • 19.84 mm

Durability tests (B)

• Contact resistance R1
  • 1.5 mΩ
• Contact resistance R2
  • 1.6 mΩ
• Impulse withstand voltage at sea level
  • 2.95 kV
• Insertion/withdrawal cycles
  • 100
• Insulation resistance, neighboring positions
  • > 0.2 TΩ
• Power-frequency withstand voltage
  • 1.39 kV
• Specification
  • IEC 60512-9-1:2010-03

Electrical parameters

• Nominal current
  • 8 A
• Nom. voltage
  • 160 V
• Rated surge voltage (II/2)
  • 2.5 kV
• Rated surge voltage (III/2)
  • 2.5 kV
• Rated surge voltage (III/3)
  • 2.5 kV
• Rated voltage
  • 160 V
• Rated voltage (II/2)
  • 320 V
• Rated voltage (III/2)
  • 160 V

Electrical tests - Function

• Specification
  • IEC 60999-1:1999-11

Environmental and durability tests (E)

• Result, degree of protection, IP code
  • Finger safety with IP20 test finger
• Specification
  • IEC 61984:2008-10

Environmental Product Compliance

• China RoHS
  • Environmentally friendly use period: unlimited = EFUP-e
  • No hazardous substances above threshold values

Item properties

• Brief article description
  • PCB connector
• Connection method
  • Push-in spring connection
• Locking
  • without
• Number of connections
  • 5
• Number of levels
  • 1
• Number of positions
  • 5
• Number of potentials
  • 5
• Pitch
  • 3.81 mm
• Plug-in system
  • MINI COMBICON
• Range of articles
  • FK-MCP 1,5/..-ST
• Type of contact
  • Female connector

Material data – actuating element

• CTI according to IEC 60112
  • 600
• Flammability rating according to UL 94
  • HB
• Insulating material
  • POM

Material data - contact

• Contact material
  • Cu alloy
• Metal surface contact area (middle layer)
  • Nickel (2 - 3 µm Ni),
• Metal surface contact area (top layer)
  • Gold (0.8 Au)
• Metal surface terminal point (middle layer)
  • Nickel (2 - 3 µm Ni)
• Metal surface terminal point (top layer)
  • Tin (5 - 8 µm Sn)
• Note
  • WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
• Surface characteristics
  • partially gold-plated

Material data - housing

• CTI according to IEC 60112
  • 600
• Flammability rating according to UL 94
  • V0
• Glow wire flammability index GWFI according to EN 60695-2-12
  • 850
• Glow wire ignition temperature GWIT according to EN 60695-2-13
  • 775
• Housing color
  • green (6021)
• Insulating material
  • PA
• Insulating material group
  • I
• Temperature for the ball pressure test according to EN 60695-10-2
  • 125 °C

Mechanical tests (A)

• Contact holder in insert requirements >20 N
  • Test passed
• Insertion strength per pos. approx.
  • 3 N
• Polarization when inserted requirement >20 N
  • Test passed
• Test specification
  • IEC 61984
• Withdraw strength per pos. approx.
  • 2 N

Packaging information

• Denomination packing units
  • Pcs.
• Pieces per package
  • 50
• Type of packaging
  • packed in cardboard

Pull-out test

• Conductor cross section / conductor type / tensile force
  • 1.5 mm² / flexible / > 40 N
  • 1.5 mm² / solid / > 40 N
  • 0.14 mm² / flexible / > 10 N
  • 0.14 mm² / solid / > 10 N
• Pull-out test
  • Test passed
  • IEC 60999-1:1999-11

Specifications for ferrules

• Ferrules with insulating collar, according to DIN 46228‑4
  • Cross section: 0.34 mm²; Length: 8 mm
  • Cross section: 0.5 mm²; Length: 8 mm - 10 mm
  • Cross section: 0.14 mm²; Length: 8 mm
  • Cross section: 0.75 mm²; Length: 10 mm
  • Cross section: 0.25 mm²; Length: 8 mm
• Ferrules without insulating collar, according to DIN 46228‑1
  • Cross section: 0.5 mm²; Length: 8 mm - 10 mm
  • Cross section: 1 mm²; Length: 8 mm - 10 mm
  • Cross section: 1.5 mm²; Length: 10 mm
  • Cross section: 0.34 mm²; Length: 7 mm
  • Cross section: 0.25 mm²; Length: 7 mm
  • Cross section: 0.75 mm²; Length: 8 mm - 10 mm
• Recommended crimping pliers
  • 1212034 CRIMPFOX 6

Temperature cycles

• Specification
  • IEC 60999-1:1999-11
• Temperature cycles
  • 192

Termination and connection method

• Conductor connection test
  • The stripped-off ends of the largest conductor can be completely inserted in the opening of the terminal point without using excessive force.
• Test for conductor damage and slackening
  • IEC 60999-1:1999-11
  • Test passed
• Test – repeated connection and release
  • Test passed
  • IEC 60999-1:1999-11
• Test result
  • Test passed
