Description

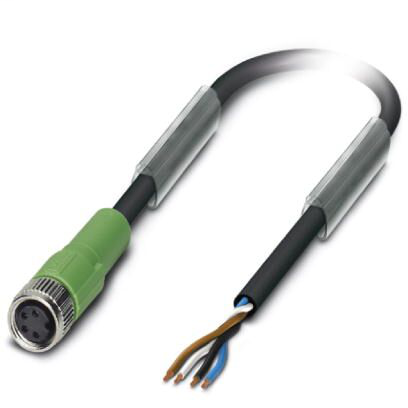

Sensor/actuator cable, 4-position, Variable cable type, free cable end, on Socket straight M8, cable length: Free input (0.2 ... 40.0 m)Sensor/actuator cable - SAC-4P-M 8FS/.../... - 1697771
Phoenix Contact 1697771 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 90 °C (Plug / socket)
- Degree of protection
- IP67
- IP65
- IP68
Dimensions
- Length of cable
- Free input (0.2 - 40.0 m)
- Stripping length of the free conductor end
- 50 mm
Environmental Product Compliance
- China RoHS
- No hazardous substances above threshold values
- Environmentally friendly use period: unlimited = EFUP-e
Gray, highly flexible PUR [800]
- Acceleration
- 5 m/s²
- 30 m/s²
- Ambient temperature (operation)
- -40 °C - 80 °C (cable, fixed installation)
- -25 °C - 80 °C (cable, flexible installation)
- AWG signal line
- 24
- Bending radius
- 50 mm
- Cable abbreviation
- LiF9Y11Y
- Cable type
- Gray, highly flexible PUR
- Cable type (abbreviation)
- 800
- Cable weight
- 27.1 kg/km
- Conductor cross section
- 4x 0.25 mm² (Signal line)
- Conductor material
- Bare Cu litz wires
- Conductor resistance
- approx. 76 Ω/km
- Conductor structure signal line
- 32x 0.10 mm
- Core diameter including insulation
- 1.15 mm ±0.05 mm (Signal line)
- External cable diameter D
- 4.5 mm ±0.2 mm
- External sheath, color
- gray RAL 7001
- Flame resistance
- in accordance with UL 758/1581 FT2
- Halogen-free
- in accordance with DIN VDE 0472 part 815
- Insulation resistance
- ≥ 20 MΩ*km
- Material conductor insulation
- PP
- Minimum bending radius, drag chain applications
- 7,5 x D
- Minimum bending radius, fixed installation
- 4 x D
- Minimum bending radius, flexible installation
- 7.5 x D
- Nominal voltage, cable
- 300 V
- Note
- Due to the extremely robust outer sheath, this cable should only be stripped in 5 cm increments.
- Number of bending cycles
- 10000000
- 15000000
- Other resistance
- Silicone-free
- Highly resistant to acids, alkaline solutions and solvents
- Outer sheath, material
- PUR
- Overall twist
- 4 wires, twisted
- Resistance to oil
- in accordance with DIN EN 60811-2-1
- Special properties
- Cable jacket is welding spark-resistant, recyclable, matt, low-adhesion, abrasion-resistant, flame-retardant, and self-extinguishing
- Free of substances which would hinder coating with paint or varnish
- Free from silicone and cadmium
- Test voltage, cable
- 1200 V
- Torsion force
- ± 360 °/m (1 000 000 torsion cycles)
- Traversing path
- 0.9 m
- 5 m
- Traversing rate
- 3.3 m/s
- 5 m/s
- UL AWM style
- 20549
- Wire colors
- brown, white, blue, black
Line characteristics
- Note
- This item is a sensor/actuator cable with a freely selectable cable type. The technical data for all possible cable types is listed in the table below.
Material
- Contact carrier material
- TPU GF
- Contact material
- CuSn
- Contact surface material
- Ni/Au
- Flammability rating according to UL 94
- HB
- Material, knurls
- Zinc die-cast, nickel-plated
- Material of grip body
- TPU, hardly inflammable, self-extinguishing
- Sealing material
- NBR
PUR halogen-free black [PUR]
- Acceleration
- 5 m/s²
- Ambient temperature (operation)
- -25 °C - 80 °C (cable, flexible installation)
- -40 °C - 80 °C (cable, fixed installation)
- AWG signal line
- 24
- Bending radius
- 44 mm
- Cable abbreviation
- Li9Y11Y-HF
- Cable type
- PUR halogen-free black
- Cable type (abbreviation)
- PUR
- Cable weight
- 23 kg/km
- Conductor cross section
- 4x 0.25 mm² (Signal line)
- Conductor material
- Bare Cu litz wires
- Conductor resistance
- max. 78 Ω/km (at 20 °C)
- Conductor structure signal line
- 32x 0.10 mm
- Core diameter including insulation
- 1.17 mm ±0.02 mm (Signal line)
- External cable diameter D
- 3.95 mm ±0.15 mm
- External sheath, color
- black-gray RAL 7021
- Flame resistance
- in accordance with UL 758/1581 FT2
- DIN EN 60332-2-2 (20 s)
- Halogen-free
- in accordance with DIN VDE 0472 part 815
- Insulation resistance
- ≥ 100 GΩ*km (at 20 °C)
- Material conductor insulation
- PP
- Nominal voltage, cable
- ≤ 300 V
- Number of bending cycles
- 10000000
- Other resistance
- Highly resistant to acids, alkaline solutions and solvents
- hydrolysis and microbe resistant
- partly UV-resistant in accordance with DIN EN ISO 4892-2-A
- Outer sheath, material
- PUR
- Overall twist
- 4 wires, twisted
- Resistance to oil
- in accordance with DIN EN 60811-2-1
- Smallest bending radius, fixed installation
- 20 mm
- Smallest bending radius, movable installation
- 40 mm
- Special properties
- Free of substances which would hinder coating with paint or varnish
- Flexible cable conduit capable
- Silicone-free
- Test voltage, cable
- ≥ 3000 V
- Thickness, insulation
- approx. 0.5 mm (Outer cable sheath)
- ≥ 0.21 mm (Core insulation)
- Traversing path
- 10 m
- Traversing rate
- 3 m/s
- UL AWM style
- 20549 / 10493 (80°C/300 V)
- Wire colors
- brown, white, blue, black
PUR halogen-free gray [280]
- Acceleration
- 5 m/s²
- Ambient temperature (operation)
- -40 °C - 80 °C (cable, fixed installation)
- -25 °C - 80 °C (cable, flexible installation)
- AWG signal line
- 24
- Bending radius
- 44 mm
- Cable abbreviation
- Li9Y11Y-HF
- Cable type
- PUR halogen-free gray
- Cable type (abbreviation)
- 280
- Cable weight
- 23 kg/km
- Conductor cross section
- 4x 0.25 mm² (Signal line)
- Conductor material
- Bare Cu litz wires
- Conductor resistance
- max. 78 Ω/km (at 20 °C)
- Conductor structure signal line
- 32x 0.10 mm
- Core diameter including insulation
- 1.17 mm ±0.02 mm (Signal line)
- External cable diameter D
- 3.95 mm ±0.15 mm
- External sheath, color
- gray RAL 7001
- Flame resistance
- in accordance with UL 758/1581 FT2
- DIN EN 60332-2-2 (20 s)
- Halogen-free
- in accordance with DIN VDE 0472 part 815
- Insulation resistance
- ≥ 100 GΩ*km (at 20 °C)
- Material conductor insulation
- PP
- Nominal voltage, cable
- ≤ 300 V
- Number of bending cycles
- 10000000
- Other resistance
- partly UV-resistant in accordance with DIN EN ISO 4892-2-A
- Highly resistant to acids, alkaline solutions and solvents
- hydrolysis and microbe resistant
- Outer sheath, material
- PUR
- Overall twist
- 4 wires, twisted
- Resistance to oil
- in accordance with DIN EN 60811-2-1
- Smallest bending radius, fixed installation
- 20 mm
- Smallest bending radius, movable installation
- 40 mm
- Special properties
- Free of substances which would hinder coating with paint or varnish
- Flexible cable conduit capable
- Silicone-free
- Test voltage, cable
- ≥ 3000 V
- Thickness, insulation
- approx. 0.5 mm (Outer cable sheath)
- ≥ 0.21 mm (Core insulation)
- Traversing path
- 10 m
- Traversing rate
- 3 m/s
- UL AWM style
- 20549 / 10493 (80°C/300 V)
- Wire colors
- brown, white, blue, black
PUR halogen-free orange [180]
- Ambient temperature (operation)
- -25 °C - 80 °C (Cable)
- AWG signal line
- 24
- Cable abbreviation
- Li9Y-11Y
- Cable type
- PUR halogen-free orange
- Cable type (abbreviation)
- 180
- Cable weight
- 25 kg/km
- Conductor cross section
- 4x 0.25 mm² (Signal line)
- Conductor material
- Bare Cu litz wires
- Conductor resistance
- max. 78 Ω/km (at 20 °C)
- Conductor structure signal line
- 32x 0.10 mm
- Core diameter including insulation
- 1.17 mm ±0.02 mm (Signal line)
- External cable diameter D
- 4.4 mm ±0.15 mm
- External sheath, color
- orange RAL 2003
- Flame resistance
- in accordance with DIN UL-Style 20549
- Halogen-free
- in accordance with DIN VDE 0472 part 815
- Insulation resistance
- ≥ 10 GΩ*km (at 20 °C)
- Material conductor insulation
- PP
- Nominal voltage, cable
- ≤ 300 V
- Outer sheath, material
- PUR
- Overall twist
- 4 wires, twisted
- Test voltage, cable
- ≥ 3000 V
- Thickness, insulation
- ≥ 0.21 mm (Core insulation)
- 0.75 mm (Outer cable sheath)
- UL AWM style
- 20549
- Wire colors
- brown, white, blue, black
PUR halogen-free yellow [240]
- Acceleration
- 10 m/s²
- Ambient temperature (operation)
- -25 °C - 80 °C (cable, flexible installation)
- -40 °C - 80 °C (cable, fixed installation)
- AWG signal line
- 24
- Cable abbreviation
- Li9Y11Y
- Cable type
- PUR halogen-free yellow
- Cable type (abbreviation)
- 240
- Cable weight
- 25 kg/km
- Conductor cross section
- 4x 0.25 mm² (Signal line)
- Conductor material
- Bare Cu litz wires
- Conductor resistance
- 78 Ω/km (at 20 °C)
- Conductor structure signal line
- 32x 0.10 mm
- Core diameter including insulation
- 1.17 mm ±0.02 mm
- External cable diameter D
- 4.4 mm ±0.15 mm
- External sheath, color
- yellow
- Flame resistance
- in accordance with UL 758/1581 FT2
- Halogen-free
- in accordance with DIN VDE 0472 part 815
- According to EN 50267-2-1
- Insulation resistance
- ≥ 1 GΩ*km (at 20 °C)
- Length of twist, overall twist
- 45 mm
- Material conductor insulation
- PP
- Minimum bending radius, drag chain applications
- 10 x D
- Minimum bending radius, fixed installation
- 5 x D
- Minimum bending radius, flexible installation
- 10 x D
- Nominal voltage, cable
- ≤ 300 V AC
- Number of bending cycles
- 4000000
- Other resistance
- Resistant to salt water
- abrasion-resistant
- Low adhesion
- hydrolysis and microbe resistant
- Outer sheath, material
- PUR
- Outer sheath thickness
- approx. 0.75 mm
- Overall twist
- 4 wires, twisted
- Resistance to oil
- According to UL 758, 168 h at 60°C
- According to DIN EN 60811-2-1, 168 h at 100°C
- Test voltage, cable
- ≥ 3000 V AC (Spark test)
- Thickness, insulation
- ≥ 0.21 mm
- Traversing path
- 10 m
- Traversing rate
- 3 m/s
- UL AWM style
- 20549
- Wire colors
- brown, white, blue, black
PVC black [PVC]
- Ambient temperature (operation)
- -5 °C - 80 °C (cable, flexible installation)
- -25 °C - 80 °C (cable, fixed installation)
- AWG signal line
- 24
- Cable abbreviation
- LiYY
- Cable type
- PVC black
- Cable type (abbreviation)
- PVC
- Cable weight
- 33 kg/km
- Conductor cross section
- 4x 0.25 mm² (Signal line)
- Conductor material
- Bare Cu litz wires
- Conductor resistance
- max. 78 Ω/km (at 20 °C)
- Conductor structure signal line
- 32x 0.10 mm
- Core diameter including insulation
- 1.25 mm ±0.02 mm
- External cable diameter D
- 4.7 mm ±0.15 mm
- External sheath, color
- black RAL 9005
- Flame resistance
- As per UL-Style 2464
- Insulation resistance
- ≥ 100 MΩ*km (at 20 °C)
- Material conductor insulation
- PVC
- Nominal voltage, cable
- ≤ 300 V
- Outer sheath, material
- PVC
- Overall twist
- 4 wires, twisted
- Test voltage, cable
- ≥ 3000 V
- Thickness, insulation
- ≥ 0.23 mm (Core insulation)
- ≥ 0.76 mm (Outer cable sheath)
- Wire colors
- brown, white, blue, black
PVC gray [500]
- Ambient temperature (operation)
- -5 °C - 80 °C (cable, flexible installation)
- -25 °C - 80 °C (cable, fixed installation)
- AWG signal line
- 24
- Cable abbreviation
- LiYY
- Cable type
- PVC gray
- Cable type (abbreviation)
- 500
- Cable weight
- 33 kg/km
- Conductor cross section
- 0.25 mm²
- Conductor material
- Bare Cu litz wires
- Conductor resistance
- max. 78 Ω/km (at 20 °C)
- Conductor structure signal line
- 32x 0.10 mm
- Core diameter including insulation
- 1.25 mm ±0.02 mm
- External cable diameter D
- 4.7 mm ±0.15 mm
- External sheath, color
- gray RAL 7001
- Flame resistance
- As per UL-Style 2464
- Insulation resistance
- ≥ 1 GΩ*km (at 20 °C)
- Material conductor insulation
- PVC
- Nominal voltage, cable
- ≤ 300 V
- Outer sheath, material
- PVC
- Overall twist
- 4 wires, twisted
- Test voltage, cable
- ≥ 3000 V
- Thickness, insulation
- ≥ 0.23 mm (Core insulation)
- ≥ 0.76 mm (Outer cable sheath)
- Wire colors
- brown, white, blue, black
Standards and Regulations
- Flammability rating according to UL 94
- HB
- Standards/specifications
- M8 connector IEC 61076-2-104
Reviews
What our customers say
BBB 4.7
Rating they have quick great service and quick shipping!! would recommend doing business over and over!!
January 7 on
Great price and speedy delivery. I am certain, based on my first statement that if needed, customer support will be excellent
December 31 on
Great customer service, fast shipping. Nice to deal with a company that shows they care about their customers.
December 5 on
I got the part and it was exactly what i needed to get my dust collector up and running again! It was also at very reasonable price. Thanks!
December 4 on
Another great purchase from Williams Automation. You will have peace of mind knowing your getting authentic parts from Williams Automation. Very easy to work with and great customer service. Plus you get at a competitive price and not three times what it should be.
November 6 on
Exceptional customer service! They had the elusive part I required readily available and responded promptly to all my emails.
November 2 on
Great customer service. Had the hard to find parts I needed in stock. All emails answered promptly.
October 9 on
Had what I needed in stock, shipped fast and arrived within the time frame indicated. It was packaged securely.
August 28 on
Perfect purchase! The whole process was great, including the packaging and shipping. Finally a company who cares!
August 13 on
Great service and Best prices ! Very organized company and helpful too. Will definitely buy again
August 10 on
