Phoenix Contact 1697483
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

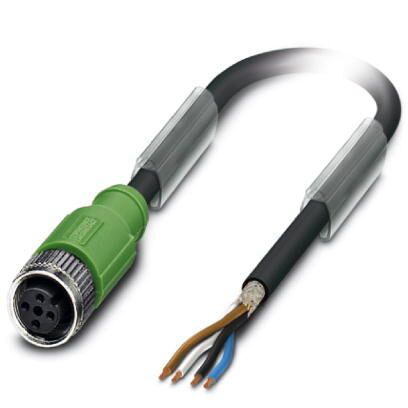

Sensor/actuator cable, 4-position, Variable cable type, shielded, free cable end, on Socket straight M12, coding: A, cable length: Free input (0.2 ... 40.0 m)Sensor/actuator cable - SAC-4P-M12FS SH/.../... - 1697483
Phoenix Contact 1697483 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 90 °C (Plug / socket)
- Degree of protection
- IP65
- IP67
Dimensions
- Length of cable
- Free input (0.2 - 40.0 m)
- Stripping length of the free conductor end
- 50 mm
Environmental Product Compliance
- China RoHS
- Environmentally friendly use period: unlimited = EFUP-e
- No hazardous substances above threshold values
Line characteristics
- Note
- This item is a sensor/actuator cable with a freely selectable cable type. The technical data for all possible cable types is listed in the table below.
Material
- Contact carrier material
- TPU GF
- Contact material
- CuSn
- Contact surface material
- Ni/Au
- Flammability rating according to UL 94
- HB
- Material, knurls
- Zinc die-cast, nickel-plated
- Material of grip body
- TPU, hardly inflammable, self-extinguishing
- Sealing material
- NBR
PUR halogen-free black [PUR]
- Acceleration
- 10 m/s²
- Ambient temperature (operation)
- -40 °C - 80 °C (cable, fixed installation)
- -25 °C - 80 °C (cable, flexible installation)
- AWG signal line
- 22
- Cable abbreviation
- Li9Y-V1-C-V1-11Y
- Cable capacity
- ≤ 135 pF/m (Wire/shield)
- ≤ 80 pF/m (Conductor-Conductor)
- Cable type
- PUR halogen-free black
- Cable type (abbreviation)
- PUR
- Cable weight
- 36 kg/km
- Conductor cross section
- 4x 0.34 mm² (Signal line)
- Conductor inductance
- approx. 0.75 mH/km (f = 1 kHz)
- Conductor material
- Bare Cu litz wires
- Conductor resistance
- max. 58 Ω/km (at 20 °C)
- Conductor structure signal line
- 42x 0.10 mm
- Core diameter including insulation
- 1.27 mm ±0.02 mm (Signal line)
- External cable diameter D
- 4.95 mm ±0.2 mm
- External sheath, color
- black-gray RAL 7021
- Flame resistance
- DIN EN 60332-2-2 (20 s)
- in accordance with UL 758/1581 FT2
- Halogen-free
- in accordance with DIN EN 50267-2-1
- in accordance with DIN VDE 0472 part 815
- Insulation resistance
- ≥ 100 GΩ*km (at 20 °C)
- Material conductor insulation
- PP
- Minimum bending radius, drag chain applications
- 10 x D
- Minimum bending radius, fixed installation
- 5 x D
- Minimum bending radius, flexible installation
- 10 x D
- Nominal voltage, cable
- ≤ 300 V
- Number of bending cycles
- 10000000
- Optical shield covering
- 80 %
- Other resistance
- hydrolysis and microbe resistant
- Resistant to salt water
- Highly resistant to acids, alkaline solutions and solvents
- abrasion-resistant
- partly UV-resistant in accordance with DIN EN ISO 4892-2-A
- Outer sheath, material
- PUR
- Outer sheath thickness
- approx. 0.5 mm
- Overall twist
- 4 wires, twisted
- Resistance to oil
- in accordance with DIN EN 60811-2-1
- Shielding
- Tinned copper braided shield
- Special properties
- Free of substances which would hinder coating with paint or varnish
- Flexible cable conduit capable
- Silicone-free
- Low adhesion surface
- Test voltage, cable
- ≥ 3000 V
- Thickness, insulation
- ≥ 0.21 mm
- Traversing path
- 10 m
- Traversing rate
- 3 m/s
- UL AWM style
- 20549 / 10493 (80°C/300 V)
- Wave impedance
- ≥ 62 Ω (f = 10 MHz)
- Wire colors
- brown, white, blue, black
PUR halogen-free gray [280]
- Acceleration
- 10 m/s²
- Ambient temperature (operation)
- -40 °C - 80 °C (cable, fixed installation)
- -25 °C - 80 °C (cable, flexible installation)
- AWG signal line
- 22
- Cable abbreviation
- Li9Y-V1-C-V1-11Y
- Cable capacity
- ≤ 80 pF/m (Conductor-Conductor)
- ≤ 135 pF/m (Wire/shield)
- Cable type
- PUR halogen-free gray
- Cable type (abbreviation)
- 280
- Cable weight
- 36 kg/km
- Conductor cross section
- 4x 0.34 mm² (Signal line)
- Conductor inductance
- approx. 0.75 mH/km (f = 1 kHz)
- Conductor material
- Bare Cu litz wires
- Conductor resistance
- max. 58 Ω/km (at 20 °C)
- Conductor structure signal line
- 42x 0.10 mm
- Core diameter including insulation
- 1.27 mm ±0.02 mm (Signal line)
- External cable diameter D
- 4.95 mm ±0.2 mm
- External sheath, color
- gray RAL 7001
- Flame resistance
- DIN EN 60332-2-2 (20 s)
- in accordance with UL 758/1581 FT2
- Halogen-free
- in accordance with DIN EN 50267-2-1
- in accordance with DIN VDE 0472 part 815
- Insulation resistance
- ≥ 100 GΩ*km (at 20 °C)
- Material conductor insulation
- PP
- Minimum bending radius, drag chain applications
- 10 x D
- Minimum bending radius, fixed installation
- 5 x D
- Minimum bending radius, flexible installation
- 10 x D
- Nominal voltage, cable
- ≤ 300 V
- Number of bending cycles
- 10000000
- Optical shield covering
- 80 %
- Other resistance
- Resistant to salt water
- hydrolysis and microbe resistant
- abrasion-resistant
- partly UV-resistant in accordance with DIN EN ISO 4892-2-A
- Highly resistant to acids, alkaline solutions and solvents
- Outer sheath, material
- PUR
- Outer sheath thickness
- approx. 0.5 mm
- Overall twist
- 4 wires, twisted
- Resistance to oil
- in accordance with DIN EN 60811-2-1
- Shielding
- Tinned copper braided shield
- Special properties
- Low adhesion surface
- Silicone-free
- Flexible cable conduit capable
- Free of substances which would hinder coating with paint or varnish
- Test voltage, cable
- ≥ 3000 V
- Thickness, insulation
- ≥ 0.21 mm
- Traversing path
- 10 m
- Traversing rate
- 3 m/s
- UL AWM style
- 20549 / 10493 (80°C/300 V)
- Wave impedance
- ≥ 62 Ω (f = 10 MHz)
- Wire colors
- brown, white, blue, black
PVC black [PVC]
- Ambient temperature (operation)
- -5 °C - 80 °C (cable, flexible installation)
- -25 °C - 80 °C (cable, fixed installation)
- AWG signal line
- 22
- Cable type
- PVC black
- Cable type (abbreviation)
- PVC
- Cable weight
- 52 kg/km
- Conductor cross section
- 4x 0.34 mm² (Signal line)
- Conductor material
- Bare Cu litz wires
- Conductor resistance
- max. 58 Ω/km (at 20 °C)
- Conductor structure signal line
- 42x 0.10 mm
- Core diameter including insulation
- 1.4 mm ±0.02 mm
- External cable diameter D
- 5.9 mm ±0.2 mm
- External sheath, color
- black RAL 9005
- Flame resistance
- As per UL-Style 2464
- Insulation resistance
- ≥ 100 MΩ*km (at 20 °C)
- Material conductor insulation
- PVC
- Nominal voltage, cable
- ≤ 300 V
- Optical shield covering
- 85 %
- Outer sheath, material
- PVC
- Overall twist
- 4 wires, twisted
- Shielding
- Tinned copper braided shield
- Special properties
- Free of substances which would hinder coating with paint or varnish
- Silicone-free
- Test voltage, cable
- ≥ 3000 V
- Thickness, insulation
- ≥ 0.76 mm (Outer cable sheath)
- ≥ 0.23 mm (Core insulation)
- Wire colors
- brown, white, blue, black
PVC gray [500]
- Ambient temperature (operation)
- -25 °C - 80 °C (cable, fixed installation)
- -5 °C - 80 °C (cable, flexible installation)
- AWG signal line
- 22
- Cable type
- PVC gray
- Cable type (abbreviation)
- 500
- Cable weight
- 57 kg/km
- Conductor cross section
- 0.34 mm²
- Conductor material
- Bare Cu litz wires
- Conductor resistance
- max. 58 Ω/km
- Conductor structure signal line
- 42x 0.10 mm
- Core diameter including insulation
- 1.4 mm ±0.02 mm
- External cable diameter
- 5.90 mm
- External sheath, color
- gray RAL 7001
- Insulation resistance
- ≥ 1 GΩ*km
- Material conductor insulation
- PVC
- Nominal voltage, cable
- 300 V
- Optical shield covering
- 85 %
- Outer sheath, material
- PVC
- Overall twist
- 4 wires, twisted
- Shielding
- Tinned copper braided shield
- Special properties
- Silicone-free
- Free of substances which would hinder coating with paint or varnish
- Test voltage, cable
- 3000 V
- Thickness, insulation
- ≥ 0.76 mm (Outer cable sheath)
- ≥ 0.23 mm (Core insulation)
- Wire colors
- brown, white, blue, black
Standards and Regulations
- Flammability rating according to UL 94
- HB
- Standards/specifications
- M12 connector IEC 61076-2-101
