Phoenix Contact 1696109
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

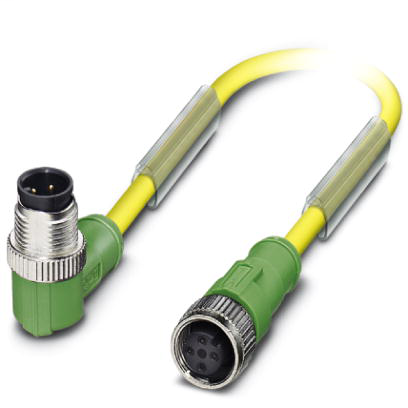

Sensor/actuator cable, 4-position, PUR/PVC, yellow, Plug angled M12, coding: A, on Socket straight M12, coding: A, cable length: 0.6 m, DESINASensor/actuator cable - SAC-4P-M12MR/0,6-PUR/M12FS D - 1696109
Phoenix Contact 1696109 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 90 °C (Plug / socket)
- Degree of protection
- IP68
- IP67
- IP65
Cable
- Ambient temperature (operation)
- -25 °C - 80 °C (cable, fixed installation)
- -5 °C - 80 °C (cable, flexible installation)
- AWG signal line
- 22
- Bending radius
- 52 mm
- Cable abbreviation
- LiYY-11Y
- Cable type
- PUR/PVC yellow
- Cable type (abbreviation)
- 140
- Cable weight
- 39 kg/km
- Conductor cross section
- 0.34 mm²
- Conductor material
- Bare Cu litz wires
- Conductor resistance
- max. 58 Ω/km (at 20 °C)
- Conductor structure signal line
- 42x 0.10 mm
- Core diameter including insulation
- 1.5 mm ±0.05 mm
- External cable diameter D
- 5.2 mm ±0.2 mm
- External sheath, color
- yellow
- Flame resistance
- in accordance with DIN UL-Style 20549
- Insulation resistance
- ≥ 1 GΩ*km (at 20 °C)
- Material conductor insulation
- PVC
- Material, inner sheath
- PVC
- Nominal voltage, cable
- ≤ 300 V
- Number of bending cycles
- 2000000
- Outer sheath, material
- PUR
- Overall twist
- 4 wires, twisted
- Smallest bending radius, fixed installation
- 52 mm
- Smallest bending radius, movable installation
- 52 mm
- Test voltage, cable
- ≥ 3000 V
- Thickness, insulation
- ≥ 0.38 mm (Outer cable sheath)
- approx. 0.35 mm (Inner sheath)
- approx. 0.3 mm (Core insulation)
- Traversing path
- 5 m
- Traversing rate
- 3 m/s
- UL AWM style
- 20549
- Wire colors
- brown, white, blue, black
Dimensions
- Length of cable
- 0.6 m
Environmental Product Compliance
- China RoHS
- No hazardous substances above threshold values
- Environmentally friendly use period: unlimited = EFUP-e
Material
- Contact carrier material
- TPU GF
- Contact material
- CuSn
- Contact surface material
- Ni/Au
- Flammability rating according to UL 94
- HB
- Material, knurls
- Zinc die-cast, nickel-plated
- Material of grip body
- TPU, hardly inflammable, self-extinguishing
- Sealing material
- NBR
Standards and Regulations
- Flammability rating according to UL 94
- HB
