Phoenix Contact 1695799
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

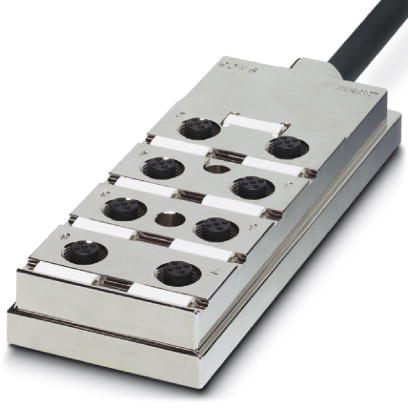

Sensor/actuator box, application: Standard, connection method: M12 socket Metal, number of slots: 4, number of positions: 5, coding: A - standard, slot assignment: Double, status display: No, Universal; master cable connection: Fixed connection 180°, PUR/PVC, cable length: 10 m, shielding: yesSensor/actuator box 1695799
Phoenix Contact 1695799 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 70 °C
- -5 °C - 80 °C (for flexible installation)
- -40 °C - 90 °C (for fixed installation)
- Degree of protection
- IP65
- IP67
Cable
- Ambient temperature (operation)
- -5 °C - 80 °C (cable, flexible installation)
- -40 °C - 90 °C (cable, fixed installation)
- AWG power supply
- 17
- AWG signal line
- 20
- Bending radius
- 94 mm
- Cable abbreviation
- LiYY11Y-HF
- Cable type
- PUR/PVC shielded, black
- Cable type (abbreviation)
- PUR
- Conductor cross section
- 8x 0.5 mm² (Signal line)
- 3x 1 mm² (Power supply)
- Conductor material
- Bare Cu litz wires
- Conductor structure signal line
- 64x 0.10 mm
- Conductor structure, voltage supply
- 128x 0.10 mm
- External cable diameter D
- 9.4 mm ±0.2 mm
- External sheath, color
- deep black RAL 9005
- Flame resistance
- DIN EN 50265
- Material conductor insulation
- PVC
- Nominal voltage, cable
- 300 V
- Number of bending cycles
- 1500000
- Other resistance
- Highly resistant to acids, alkaline solutions and solvents
- Outer sheath, material
- PUR
- Overall twist
- Wires twisted in layers
- Resistance to oil
- according to VDE 0472 Part 803
- Shielding
- Tinned copper braided shield
- Special properties
- Silicone-free
- Free of substances which would hinder coating with paint or varnish
- Test voltage, cable
- 2000 V
- Traversing path
- 2 m
- Traversing rate
- 2 m/s
- Wire colors
- brown, blue, green/yellow, white, green, yellow, gray, gray/pink, red/blue, white/green, brown/green
Environmental Product Compliance
- China RoHS
- No hazardous substances above threshold values
- Environmentally friendly use period: unlimited = EFUP-e
Insulation material
- Contact carrier material
- PA
- Contact material
- Cu alloy
- Contact surface material
- gold-plated
- Housing material
- Aluminum
- Housing surface material
- Nickel-plated
- Material of contact, master cable side
- CU alloy
- Material of contact surface, master cable side
- Gold-plated
- Material of the moulding mass
- PUR
- Material of threaded sleeve
- Aluminum
- O-ring material
- NBR
Master cable connection data
- Connection method
- Fixed connection
- Length of cable
- 10 m
- Tightening torque slot sensor/actuator cable
- 0.4 Nm
Pin assignment
- Slot/position = Wire color or connection
- 4 / 4 (A) = GY
- 2 / 2 (B) = RD/BU
- 1-4 / 5 (PE) = GN/YE
- 1 / 4 (A) = WH
- 2 / 4 (A) = GN
- 3 / 2 (B) = WH/GN
- 1-4 / 1 (+ 48 V) = BN
- 4 / 2 (B) = BN/GN
- 1-4 / 3 (0 V) = BU
- 1 / 2 (B) = GY/PK
- 3 / 4 (A) = YE
Standards and Regulations
- Flammability rating according to UL 94
- V0
- Standard designation
- M12 connector
- Standards/regulations
- IEC 61076-2-101
