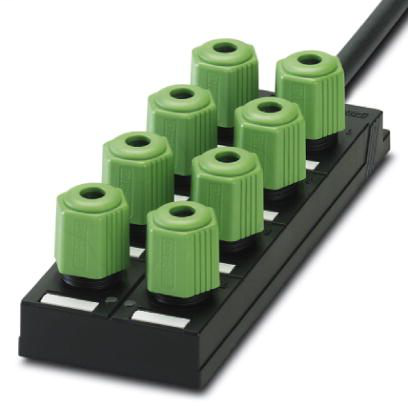

Phoenix Contact 1695294

Ambient conditions

• Ambient temperature (operation)
  • -25 °C - 60 °C
  • -5 °C - 80 °C (for flexible installation)
  • -40 °C - 90 °C (for fixed installation)
• Degree of protection
  • IP67
  • IP65

Cable

• Ambient temperature (operation)
  • -5 °C - 80 °C (cable, flexible installation)
  • -40 °C - 90 °C (cable, fixed installation)
• AWG power supply
  • 18
• AWG signal line
  • 22
• Cable abbreviation
  • LiYY11Y-HF
• Cable type
  • PUR/PVC black
• Cable type (abbreviation)
  • PUR
• Cable weight
  • 107.4 kg/km
• Conductor cross section
  • 8x 0.34 mm² (Signal line)
  • 3x 0.75 mm² (power line)
• Conductor material
  • Bare Cu litz wires
• Conductor resistance
  • ≤ 26 Ω/km (power line)
  • ≤ 53 Ω/km (Signal line)
• Conductor structure signal line
  • 19x 0.15 mm
• Conductor structure, voltage supply
  • 42x 0.15 mm
• Core diameter including insulation
  • 1.8 mm ±0.1 mm (power line)
  • 1.3 mm ±0.1 mm (Signal line)
• External cable diameter D
  • 8.5 mm ±0.2 mm
• External sheath, color
  • black RAL 9005
• Flame resistance
  • DIN EN 50265
• Inner sheath thickness
  • ≥ 0.15 mm
• Insulation resistance
  • ≥ 5 MΩ*km
• Material conductor insulation
  • PVC
• Material, inner sheath
  • PVC
• Minimum bending radius, drag chain applications
  • 10 x D
• Minimum bending radius, fixed installation
  • 7.5 x D
• Minimum bending radius, flexible installation
  • 10 x D
• Nominal voltage, cable
  • 300 V AC
• Number of bending cycles
  • 1500000
• Other resistance
  • Highly resistant to acids, alkaline solutions and solvents
• Outer sheath, material
  • PUR
• Outer sheath thickness
  • ≥ 0.38 mm
• Overall twist
  • Wires twisted in layers
• Resistance to oil
  • according to VDE 0472 Part 803
• Special properties
  • Silicone-free
• Test voltage Core/Core
  • 2000 V (50 Hz, 5 min.)
• Traversing path
  • 2 m
• Traversing rate
  • 2 m/s
• UL AWM style
  • 20549 (80°C/300 V)
• Wire colors
  • brown, blue, green/yellow, white, green, yellow, gray, pink, red, black, violet

Conductor data

• Conductor cross section AWG max.
  • 18
• Conductor cross section AWG min.
  • 22
• Conductor cross section flexible max.
  • 0.75 mm²
• Conductor cross section flexible min.
  • 0.34 mm²
• Maximum external conductor diameter
  • 7.5 mm
• Minimum external conductor diameter
  • 4 mm
• Note on the frequency of connections
  • if the conductor is connected more than once, seal and cap may need to be replaced.
• Structure of individual litz in acc. with VDE 0295 / smallest wire diameter
  • Class 2-6 // 0.34 mm²: 0.1 mm; 0.5 - 0.75 mm²: 0.15 mm
• Tightening torque, union nut
  • 2.5 Nm
• Wire diameter including insulation
  • ≤ 2.5 mm
• Wire insulation material
  • PVC / PE
• Wrench size, union nut
  • 22 mm

Environmental Product Compliance

• China RoHS
  • For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
  • Environmentally Friendly Use Period = 50

Insulation material

• Contact carrier material
  • PA 6.6
• Contact material
  • Steel/copper
• Contact surface material
  • Sn
• Housing material
  • PA
• Material of the moulding mass
  • PUR

Local diagnostics function

• Local diagnostics
  • Status display I/O Yellow LED
  • Supply voltage Green LED

Master cable connection data

• Connection method
  • Fixed connection
• Length of cable
  • 10 m

Pin assignment

• Slot/position = Wire color or connection
  • 8 / 4 (A) = VT
  • 4 / 4 (A) = GY
  • 3 / 4 (A) = YE
  • 1 / 4 (A) = WH
  • 1-8 / 1 (+ 120 V) = BN
  • 7 / 4 (A) = BK
  • 5 / 4 (A) = PK
  • 6 / 4 (A) = RD
  • 2 / 4 (A) = GN
  • 1-8 / 5 (PE) = GN/YE
  • 1-8 / 3 (0 V) = BU

Standards and Regulations

• Connection in acc. with standard
  • CUL
• Flammability rating according to UL 94
  • V0
