Phoenix Contact 1688230
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

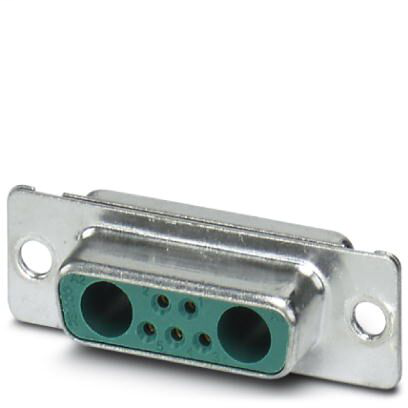

D-SUB contact insert, shell size 2, with five signal contacts with solder cup, straight, accommodation for two combined contacts, type of contact socket, fixing with a 3 mm hole, for panel mounting frame and sleeve housing VS-15-...D-SUB combination contact insert - VS-15-BU-DSUB-2P-5S - 1688230
Phoenix Contact 1688230 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -55 °C - 130 °C
Electrical characteristics
- Degree of pollution
- 2
- Insulation resistance
- ≥ 5 GΩ
- Number of positions
- 7
- Overvoltage category
- III
- Rated current
- 5 A (at 20°C (signal contacts))
- Rated voltage (III/3)
- 250 V
- Test voltage
- 1200 V
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
Material data
- Contact carrier material
- PBT-GF
- Contact material
- Copper alloy
- Contact surface material
- Gold over nickel
- Height
- 12.93 mm
- Housing material
- Steel, tin-plated
- Length
- 39.52 mm
- Mounting type
- Hole
- Width
- 14.5 mm
Mechanical characteristics
- AWG solid max.
- 20
- Conductor cross section
- 0.5 mm²
- Connection method
- Solder cup
- Degree of pollution
- 2
- Overvoltage category
- III
- Weight
- 4.35 g
Standards and Regulations
- Flammability rating according to UL 94
- V0
