Phoenix Contact 1671771
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

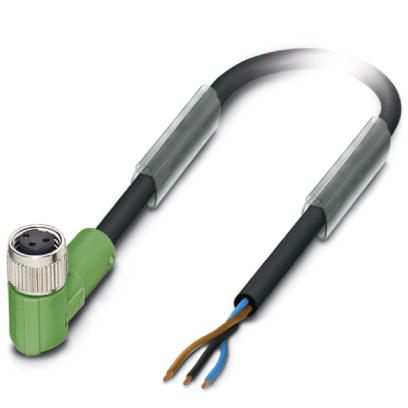

Sensor/actuator cable, 3-position, PUR halogen-free, black-gray RAL 7021, free cable end, on Socket angled M8, cable length: 1.5 mSensor/actuator cable 1671771
Phoenix Contact 1671771 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 90 °C (Plug / socket)
- Degree of protection
- IP68
- IP65
- IP67
Cable
- Acceleration
- 10 m/s²
- Ambient temperature (operation)
- -40 °C - 80 °C (cable, fixed installation)
- -25 °C - 80 °C (cable, flexible installation)
- AWG signal line
- 22
- Bending radius
- 44 mm
- Cable abbreviation
- Li9Y11Y
- Cable type
- PUR halogen-free black
- Cable type (abbreviation)
- PUR
- Cable weight
- 23 kg/km
- Conductor cross section
- 3x 0.34 mm² (Signal line)
- Conductor material
- Bare Cu litz wires
- Conductor resistance
- max. 58 Ω/km (at 20 °C)
- Conductor structure signal line
- 42x 0.10 mm
- Core diameter including insulation
- 1.27 mm ±0.02 mm (Signal line)
- External cable diameter D
- 3.85 mm ±0.15 mm
- External sheath, color
- black-gray RAL 7021
- Flame resistance
- in accordance with UL 758/1581 FT2
- DIN EN 60332-2-2 (20 s)
- Halogen-free
- in accordance with DIN VDE 0472 part 815
- Insulation resistance
- ≥ 100 GΩ*km (at 20 °C)
- Material conductor insulation
- PP
- Nominal voltage, cable
- ≤ 300 V
- Number of bending cycles
- 10000000
- Other resistance
- partly UV-resistant in accordance with DIN EN ISO 4892-2-A
- hydrolysis and microbe resistant
- Highly resistant to acids, alkaline solutions and solvents
- Outer sheath, material
- PUR
- Overall twist
- 3 wires, twisted
- Resistance to oil
- in accordance with DIN EN 60811-2-1
- Smallest bending radius, fixed installation
- 19 mm
- Smallest bending radius, movable installation
- 38 mm
- Special properties
- Free of substances which would hinder coating with paint or varnish
- Flexible cable conduit capable
- Silicone-free
- Test voltage, cable
- ≥ 3000 V
- Thickness, insulation
- approx. 0.5 mm (Outer cable sheath)
- ≥ 0.21 mm (Core insulation)
- Traversing path
- 10 m
- Traversing rate
- 3 m/s
- UL AWM style
- 20549
- Wire colors
- brown, blue, black
Dimensions
- Length of cable
- 1.5 m
- Stripping length of the free conductor end
- 50 mm
Environmental Product Compliance
- China RoHS
- No hazardous substances above threshold values
- Environmentally friendly use period: unlimited = EFUP-e
Material
- Contact carrier material
- TPU GF
- Contact material
- CuSn
- Contact surface material
- Ni/Au
- Flammability rating according to UL 94
- HB
- Material, knurls
- Zinc die-cast, nickel-plated
- Material of grip body
- TPU, hardly inflammable, self-extinguishing
- Sealing material
- NBR
Standards and Regulations
- Flammability rating according to UL 94
- HB
