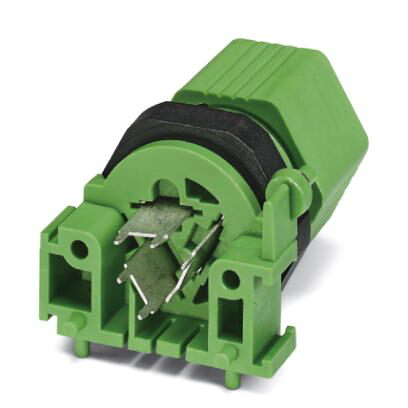

Phoenix Contact 1670400
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Panel feed-through, for internal wall mounting, with dip-solder connection, length of the solder pin: 3.8 mm, hole Ø 3-pos. = 20.8 mm - 0.3Panel feed-through - Q 1,5/3L180/13KU-DSI - 1670400
Phoenix Contact 1670400 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 50 °C (when the conductor is connected. Specifications of the cable manufacturer must also be observed.)
- -25 °C - 80 °C
- Degree of protection
- IP65
- IP67
- Temperature when conductor connected
- -5 °C - 50 °C
Cabel
- Position marking
- 1, 2, 3
- Structure of individual litz in acc. with VDE 0295 / smallest wire diameter
- VDE 0295 Cl.2-5, min. wire diameter 0.2 mm
- Wire diameter including insulation
- >= 3 mm
- Wire insulation material
- PVC / PE
Electrical characteristics
- Nominal current IN
- 17.5 A
- Nominal voltage UN
- 250 V DC
- 250 V AC
- Rated surge voltage (III/3)
- 6 kV
- Rated voltage (II/2)
- 630 V
- Rated voltage (III/2)
- 320 V
- Rated voltage (III/3)
- 250 V
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
Material data
- Contact carrier material
- PA 6.6
- Contact material
- Copper alloy
- Contact surface material
- Pre-nickel plated and tin-plated
- Degree of pollution
- 3
- Flammability rating according to UL 94
- V0
- Overvoltage category
- III
Mechanical characteristics
- Impact category
- 4
- PC QUICKON thread type
- Pg13.5
- QUICKON connectability
- 10 (if the conductor is connected more than once, seal and cap may need to be replaced.)
Standards and Regulations
- Connection in acc. with standard
- CUL
- Flammability rating according to UL 94
- V0
