Phoenix Contact 1658529
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

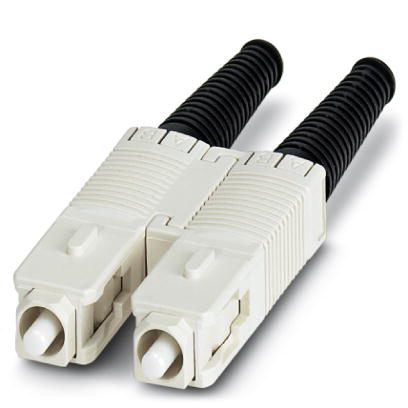

Fiber optic connector SC duplex, IP20, with fast connection technology, for fiberglass multi-mode 50/125 µm, for individual wire diameter 2.9 mmFO connectors 1658529
Phoenix Contact 1658529 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 70 °C
- Degree of protection
- IP20
Environmental Product Compliance
- China RoHS
- Environmentally friendly use period: unlimited = EFUP-e
- No hazardous substances above threshold values
Material data
- Contact carrier material
- PEI
- Ferrule holder color
- white
- Ferrule material
- Zirconia ceramics
- Flammability rating according to UL 94
- V0
- Height
- 9 mm
- Housing material
- PPO
- Material
- Plastic
Mechanical characteristics
- Cable outlet
- straight
- Color
- black
- Connection profile
- SC duplex as per IEC 61754-4
- Degree of protection
- IP20
- Ferrule diameter
- 2.50 mm
- Fiber type
- GOF fiber A1a, A1b
- Insertion/withdrawal cycles
- ≥ 1000
- Max. cable diameter
- 2 mm - 3 mm
- No. of cable outlets
- 1
- Note
- Only for assembly with tool 1658228 VS-GOF-FA-KONFTOOL-EU and 1658231 VS-GOF-FA-KONFTOOL-US. Not suitable for assembly with tool 1411049 FOC-TOOL-GOF KONF SET9.
- Number of positions
- 2
- Type
- SC duplex
- Type of cable
- For all common cable types
- Type of note
- Order information:
- Wire diameter
- 2.9 mm
Optical characteristics
- Attenuation
- < 0.5 dB (Insertion attenuation)
Standards and Regulations
- Flammability rating according to UL 94
- V0
