Description

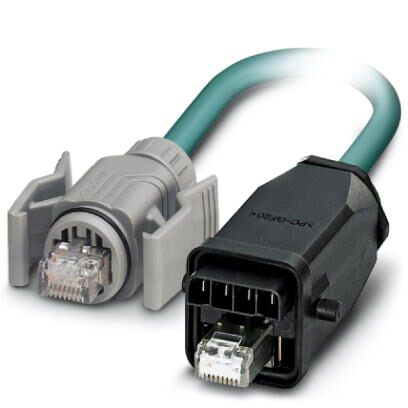

Assembled Ethernet cable, shielded, 4-pair, 26 AWG stranded (7-wire), RAL 5021 (water blue), RJ45 plug/IP67 (gray) to HAN3 RJ45 plug (black), line, length: 1.0 mCable - VS-08-LI-VS67-HAN3AH-51-1,0 - 1658011
Phoenix Contact 1658011 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -30 °C - 80 °C (cable, fixed installation)
- Plug / socket
- -5 °C - 60 °C (cable, flexible installation)
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
Line characteristics
- Ambient temperature (operation)
- -5 °C - 60 °C (cable, flexible installation)
- -20 °C - 70 °C (cable, fixed installation)
- AWG signal line
- 26
- Cable structure
- 4x2xAWG26/7; S-UTP
- Cable type
- Ethernet
- Conductor cross section
- 0.14 mm²
- Conductor material
- Bare Cu litz wires
- Conductor resistance
- ≤ 284 Ω/km
- Conductor structure signal line
- 7x 0.16 mm
- Core diameter including insulation
- 1 mm
- External cable diameter
- 6.10 mm
- External sheath, color
- water blue RAL 5021
- Insulation resistance
- ≥ 5 GΩ*km
- Nominal voltage, cable
- 125 V
- Optical shield covering
- 85 %
- Outer sheath, material
- PUR
- Overall twist
- 4 pairs for core
- Shielding
- Plastic-coated aluminum foil, tinned copper braided shield
- Smallest bending radius, fixed installation
- 50 mm (cable, fixed installation)
- Smallest bending radius, movable installation
- 95 mm (cable, flexible installation)
- Test voltage Core/Core
- 1000 V
- Test voltage Core/Shield
- 500 V
- Transmission characteristics (category)
- CAT5 (IEC 11801:2002)
- Twisted pairs
- 2 cores to the pair
- Wave impedance
- 100 Ω ±15 % (at 1 - 100 MHz)
- Wire colors
- white/blue-blue, white/orange-orange, white/green-green, white/brown-brown
- Working capacitance
- 48 nF (At 800 Hz)
Mechanical characteristics
- Weight
- 97 g
