Phoenix Contact 1656783
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

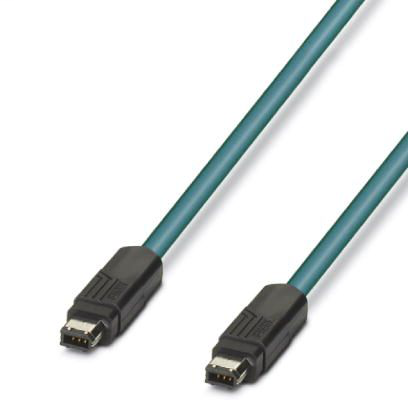

Assembled FireWire cable, shielded, color: RAL 5021 (water blue), PUR outer sheath, FireWire/standard on FireWire/standard, length: 7.5 mPatch cable 1656783
Phoenix Contact 1656783 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- 0 °C - 50 °C (cable, flexible installation)
- Plug / socket
- -20 °C - 60 °C (cable, fixed installation)
- Degree of protection
- IP20
Electrical characteristics
- Rated current
- 1 A
- Rated voltage (III/3)
- 125 V
- Transmission characteristics (category)
- FireWire (400 Mbps)
Line characteristics
- Ambient temperature (operation)
- -10 °C - 50 °C (cable, flexible installation)
- -40 °C - 70 °C (cable, fixed installation)
- AWG power supply
- 20
- AWG signal line
- 26
- Cable structure
- 2x2xAWG26/7 + 2xAWG20/19; S/FTP
- Cable type
- FireWire
- Cable weight
- 59 kg/km
- Conductor cross section
- 2x 2x 0.14 mm² (Signal line)
- 2x 0.5 mm² (Power supply)
- Conductor material
- Bare Cu litz wires
- Conductor resistance
- 150 Ω/km
- Conductor structure signal line
- 7x 0.15 mm
- Conductor structure, voltage supply
- 19x 0.20 mm
- Core diameter including insulation
- ≤ 1.05 mm (Signal line)
- nom. 1.4 mm (Power supply)
- Coupling resistance
- 5.00 mΩ/m (at 10 MHz)
- External cable diameter
- 6.7 mm
- External sheath, color
- water blue RAL 5021
- Flame resistance
- complying with IEC 60332-2-2
- Insulation resistance
- 5 GΩ*km
- Interference suppression
- 90 dB (up to 1000 MHz)
- Material conductor insulation
- PVC (Power supply)
- Cell PE (Signal line)
- Minimum bending radius, fixed installation
- 5 x D
- Minimum bending radius, flexible installation
- 5 x D
- Nominal voltage, cable
- ≤ 125 V
- Other resistance
- Microbe resistance as per DIN VDE 0282
- Hydrolysis resistance as per DIN 53504
- Outer sheath, material
- PUR
- Overall twist
- Two pairs and two power supply wires to the core
- Resistance to oil
- according to EN 60811-2-1
- Shield attenuation
- 60 dB (up to 1000 MHz)
- Shielding
- Tinned copper braided shield
- Signal runtime
- 4.6 ns/m
- Signal speed
- 0.72 c
- Special properties
- Free of substances which would hinder coating with paint or varnish
- Test voltage, cable
- 1000 V
- Transmission characteristics (category)
- CAT7, for USB 2.0 (480 Mbps)
- Twisted pairs
- 2 cores to the pair
- Type of pair shielding
- Aluminum-lined polyester foil
- Wave impedance
- 100 Ω ±5 % (at 100 MHz)
- Wire colors
- White-blue, white-orange, white, black
- Working capacitance
- 42 pF (per meter)
Material data
- External sheath, color
- water blue RAL 5021
- Housing material
- PA
- Outer sheath, material
- PUR
Mechanical characteristics
- Cable diameter
- 6.70 mm
- Cable structure
- 2x2xAWG26/7 + 2xAWG20/19; S/FTP
- Degree of protection
- IP20
- IP20
- Insertion/withdrawal cycles
- ≥ 1000
- Number of positions
- 6
- Shielded
- yes
