Phoenix Contact 1652949
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

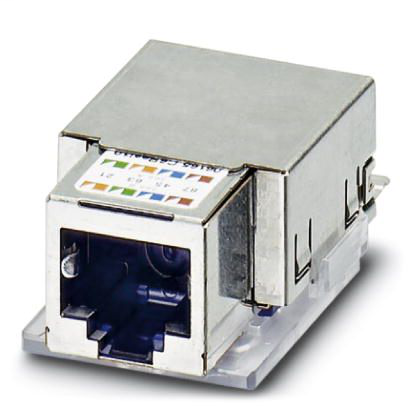

RJ45 socket insert, degree of protection: IP20, number of positions: 8, connection method: IDC, connection cross section: AWG 26- 22RJ45 socket insert 1652949
Phoenix Contact 1652949 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (assembly)
- 0 °C - 60 °C
- Ambient temperature (operation)
- -20 °C - 70 °C
- Ambient temperature (storage/transport)
- -40 °C - 70 °C
Electrical characteristics
- Degree of pollution
- 1
- Number of positions
- 8
- Overvoltage category
- I
- Rated current
- 1 A
- Rated voltage (III/3)
- 50 V
- Transmission characteristics (category)
- CAT6
Environmental Product Compliance
- China RoHS
- Environmentally friendly use period: unlimited = EFUP-e
- No hazardous substances above threshold values
Material data
- Contact carrier material
- PC
- Contact material
- Copper alloy
- Contact surface material
- Gold over nickel
- Flammability rating according to UL 94
- V0
- Height
- 17.35 mm
Mechanical characteristics
- Conductor cross section
- 0.14 mm² - 0.35 mm²
- Connection cross section AWG
- 26 - 22 (7-wire)
- 24 - 22 (solid)
- Connection method
- IDC
- Degree of protection
- IP20
- Insertion/withdrawal cycles
- ≥ 750
- Insulation resistance
- ≥ 500 MΩ
- Number of positions
- 8
- Number of slots
- 1
- Shielded
- yes
Standards and Regulations
- Flammability rating according to UL 94
- V0
