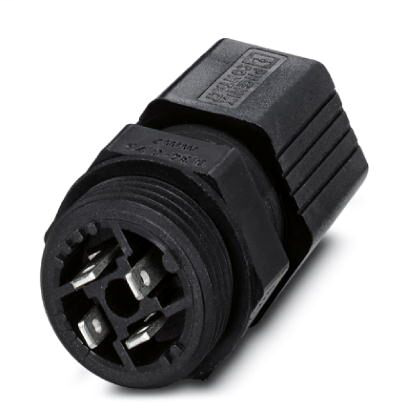

Phoenix Contact 1641989
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
QUICKON panel feed-through, for external wall mounting with manual solder/slip-on connection, 2.8 x 0.8 mm. 4-pos.Panel feed-through - Q 0,75/4FL/11-M20KU-ESA BK - 1641989
Phoenix Contact 1641989 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 50 °C (when the conductor is connected. Specifications of the cable manufacturer must also be observed.)
- -25 °C - 80 °C (Specifications of the cable manufacturer must be observed.)
- Degree of protection
- IP65
- IP67
- Temperature when conductor connected
- -5 °C - 50 °C (specifications of the cable manufacturer must also be observed)
Cabel
- External cable diameter
- 6 mm - 8 mm
- Position marking
- 1, 2, 3, 4
- Structure of individual litz in acc. with VDE 0295 / smallest wire diameter
- Class 2-6 // 0.34 mm²: 0.1 mm; 0.5 - 0.75 mm²: 0.15 mm
- Wire diameter including insulation
- >= 2.5 mm
- Wire insulation material
- PVC / PE
Electrical characteristics
- Nominal current IN
- 9 A
- Nominal voltage UN
- 160 V AC
- 160 V DC
- Note on the rated voltage (II/2)
- with insulating sleeve
- Note on the rated voltage (III/2)
- with insulating sleeve
- Note on the rated voltage (III/3)
- with insulating sleeve
- Rated current
- 9 A
- Rated surge voltage (II/2)
- 4 kV
- Rated surge voltage (III/2)
- 4 kV
- Rated surge voltage (III/3)
- 4 kV
- Rated voltage (II/2)
- 320 V
- Rated voltage (III/2)
- 160 V
- Rated voltage (III/3)
- 160 V
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
Material data
- Contact carrier material
- PA
- Contact material
- CuZn
- Contact surface material
- Tin-plated
- Degree of pollution
- 3
- Flammability rating according to UL 94
- V0
- Insulating material
- PA
- Overvoltage category
- III
Mechanical characteristics
- Category of shock impact
- IK07
- Impact category
- 3
- PC QUICKON thread type
- M20
- QUICKON connectability
- max. 10 (if the conductor is connected more than once, seal and cap may need to be replaced.)
Standards and Regulations
- Connection in acc. with standard
- CUL
- Flammability rating according to UL 94
- V0
