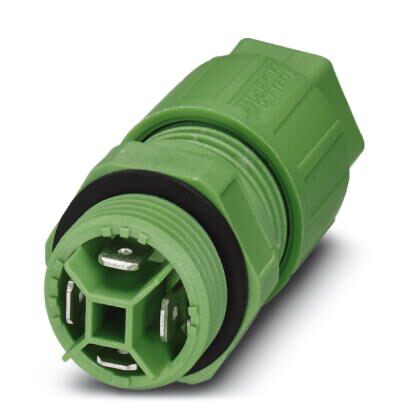

Phoenix Contact 1641646
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Panel feed-through, with 0.5 m long wires, 1.5 mm²Panel feed-through - Q 1,5/4A50/24-M20KU-ESA - 1641646
Phoenix Contact 1641646 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 50 °C
- -40 °C - 80 °C (specifications of the cable manufacturer must also be observed)
- Degree of protection
- IP67
- IP65
- Temperature when conductor connected
- -5 °C - 50 °C (specifications of the cable manufacturer must also be observed)
Cabel
- External cable diameter
- 6 mm - 12 mm
- Position marking
- 1, 2, 3, 4
- Structure of individual litz in acc. with VDE 0295 / smallest wire diameter
- VDE 0295 class 1 to 6/min. 0.15 mm
- Wire diameter including insulation
- 1.8 mm - 3 mm
- Wire insulation material
- PVC / PE
Electrical characteristics
- Nominal current IN
- 15 A
- Nominal voltage UN
- 500 V AC
- 500 V DC
- Note on the rated voltage (III/3)
- with insulating sleeve PT/FS 4,8. Without insulating sleeve 250 V AC.
- Rated current
- 15 A
- Rated surge voltage (II/2)
- 6 kV
- Rated surge voltage (III/2)
- 6 kV
- Rated surge voltage (III/3)
- 6 kV
- Rated voltage (II/2)
- 1000 V
- Rated voltage (III/2)
- 800 V
- Rated voltage (III/3)
- 500 V
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
Material data
- Contact carrier material
- PA
- Contact material
- CuZn
- Contact surface material
- Tin-plated
- Degree of pollution
- 3
- Flammability rating according to UL 94
- V0
- Insulating material
- PA
- Overvoltage category
- III
Mechanical characteristics
- Impact category
- 3
- PC QUICKON thread type
- M20
- QUICKON connectability
- max. 10
Standards and Regulations
- Connection in acc. with standard
- CUL
- Flammability rating according to UL 94
- V0
