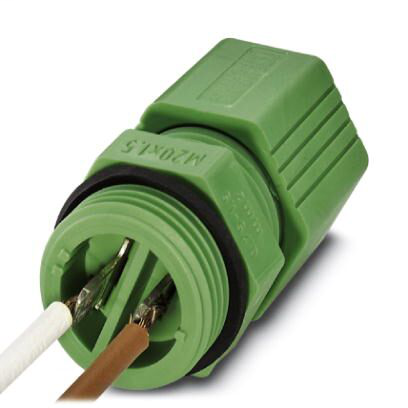

Phoenix Contact 1640728

Ambient conditions

• Ambient temperature (operation)
  • -25 °C - 80 °C (Specifications of the cable manufacturer must be observed.)
  • -25 °C - 50 °C (when the conductor is connected. Specifications of the cable manufacturer must also be observed.)
• Degree of protection
  • IP67
  • IP65
• Temperature when conductor connected
  • -5 °C - 50 °C

Cabel

• Conductor cross section
  • 1.5 mm² (Pos. 1: Brown; pos. 2: White)
• Position marking
  • 1, 2
• Structure of individual litz in acc. with VDE 0295 / smallest wire diameter
  • VDE 0295 Cl.2-5, min. wire diameter 0.2 mm
• Wire diameter including insulation
  • >= 3 mm
• Wire insulation material
  • PVC / PE

Electrical characteristics

• Nominal current IN
  • 17.5 A
• Nominal voltage UN
  • 250 V DC
  • 250 V AC
• Note on the rated voltage (II/2)
  • with insulating sleeve
• Note on the rated voltage (III/2)
  • with insulating sleeve
• Note on the rated voltage (III/3)
  • with insulating sleeve
• Rated surge voltage (III/3)
  • 6 kV
• Rated voltage (II/2)
  • 630 V
• Rated voltage (III/2)
  • 320 V
• Rated voltage (III/3)
  • 250 V

Environmental Product Compliance

• China RoHS
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
  • Environmentally Friendly Use Period = 50 years

Material data

• Contact carrier material
  • PA 6.6
• Contact material
  • Copper alloy
• Contact surface material
  • Pre-nickel plated and tin-plated
• Degree of pollution
  • 3
• Flammability rating according to UL 94
  • V0
• Overvoltage category
  • III

Mechanical characteristics

• Impact category
  • 3
• PC QUICKON thread type
  • M20 x 1,5 VDE approval available
• QUICKON connectability
  • 10 (if the conductor is connected more than once, seal and cap may need to be replaced.)

Standards and Regulations

• Connection in acc. with standard
  • CUL
• Flammability rating according to UL 94
  • V0
