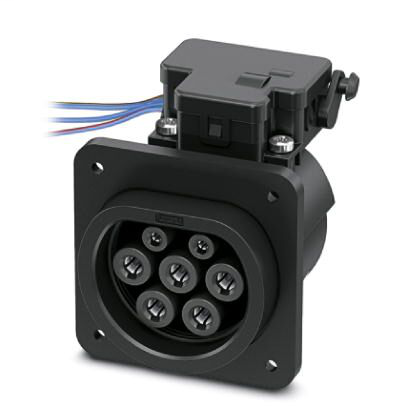

Phoenix Contact 1628147

Ambient conditions

• Ambient temperature (operation)
  • -30 °C - 50 °C
• Ambient temperature (storage/transport)
  • -40 °C - 80 °C
• Degree of protection
  • IP44 (plugged in)
  • IP54 (with protective cover, see accessories)
• Max. altitude
  • 5000 m (above sea level)

Design

• Customer variations
  • On request
• Design line
  • Generation 1
• Housing color
  • black

Dimensions

• Bore dimensions
  • 60 mm x 60 mm
• Cable structure
  • 3x 6.0 mm² + 2x 0.5 mm²
• Conductor length
  • 0.7 m (AC cables)
  • 0.5 m (Locking actuator cables)
• Depth
  • 76.2 mm
• Height
  • 96 mm
• Type of conductor
  • Single wires
• Width
  • 75 mm

Electrical properties

• Maximum charging power
  • 8 kW
• Note on the connection method
  • Crimp connection, cannot be disconnected
• Number of phases
  • 1
• Number of power contacts
  • 3 (L1, N, PE)
• Number of signal contacts
  • 2 (CP, PP)
• Rated current for signal contacts
  • 2 A
• Rated current of power contacts
  • 32 A
• Rated voltage for power contacts
  • 250 V AC
• Rated voltage for signal contacts
  • 30 V AC
• Type of charging current
  • AC single-phase
• Type of signal transmission
  • Pulse width modulation

Environmental Product Compliance

• China RoHS
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
  • Environmentally Friendly Use Period = 10;
• REACh SVHC
  • Lead 7439-92-1

Locking

• Locking type
  • Locking in the inserted state with a locking mechanism

Locking actuator

• Ambient temperature (operation)
  • -30 °C - 50 °C
• Cable length
  • 0.5 m
• Cable structure
  • 4 x 0.5 mm²
• Lock recognition
  • available
• Max. dwell time with reverse current
  • 1000 ms
• Maximum voltage for locking detection
  • 30 V
• Mechanical emergency release
  • available
• Number of positions of theconnectors
  • 4
• Operating voltage
  • 12 V (Typical power supply at the motor)
• Pause time after entry or exit path
  • 3 s
• Possible power supply range at the motor
  • 9 V - 16 V
• Recommended adaptation time
  • 600 ms
• Reverse current of the motor
  • max. 1 A
• Service life insertion cycles
  • > 10000 load cycles
• Typical motor current for locking
  • 0.2 A

Material

• Material
  • Plastic
• Material surface of contacts
  • Ag

Mechanical properties

• Insertion force
  • < 100 N
• Insertion/withdrawal cycles
  • > 10000
• Withdrawal force
  • < 100 N

Mounting

• Max. wall thickness
  • max. 50 mm (Rear panel mounting, normative maximum specification for infrastructure plug)
  • max. 22 mm (Rear panel mounting, normative maximum specification for infrastructure plug when using the protective cover (Order No. 1627635) with fastening frame (Order No. 1627637))
• Mounting hole diameter
  • 7.00 mm (ø)
• Mounting position of the locking actuator
  • Top center
• Possible mounting positions
  • Rear panel mounting
• Restrictions to mounting position
  • Only 0 to 90 degree frontal inclination possible, see figure
• Screw connection of a protective cover
  • Only possible on the front

Product definition

• Affixed logo
  • PHOENIX CONTACT' logo
• Application
  • For charging electric vehicles with alternating current (AC)
  • Compatible with infrastructure charging plugs
• Charging mode
  • Mode 3, Case B
• Charging standard
  • Type 2
• Design
  • Generation 1
• Note on the connection method
  • Crimp connection, cannot be disconnected
• Standards/regulations
  • IEC 62196-2
• Type
  • Front protective cover screw connection
