Phoenix Contact 1628080
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

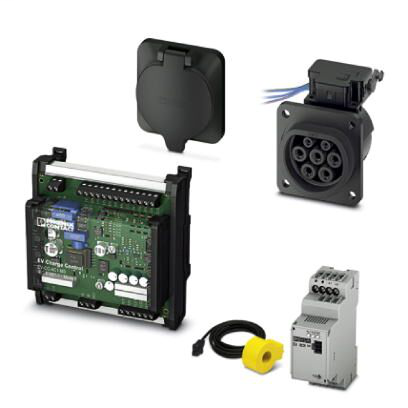

HOME charging technology set starter kitFor easy assembly of a charging station, Integrated release function of the locking actuator for disconnection of Infrastructure Plug and Infrastructure Socket Outlet, IEC 62196-2, IEC 61851-1, Mode 3, Case B, 11 kW, 16 A, 400 V AC, cable: 0.7 mSet - EV-SET-T2AC-BAS-RCM1-20ASE12 - 1628080
Phoenix Contact 1628080 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Charging technology set
- Charging controller
- Basic AC charging controller, preconfigured
- Locking release in the event of mains failure
- Integrated release function of the locking actuator for disconnection of Infrastructure Plug and Infrastructure Socket Outlet
- Residual current monitoring module
- 1-channel RCM
- Set consists of
- 3211813 PT 6
- 3211819 PT 6 BU
- 3211822 PT 6-PE
- 3208773 PT 16-TWIN N BU
- 3005950 FBS 2-12
- 1405217 EV-T2SC
- 1622450 EV-RCM-C1-AC30-DC6
- 3030417 D-ST 2,5
- 3208786 PT 16-TWIN N-PE
- 3209552 PT 2,5-TWIN BU
- 3209510 PT 2,5
- 3209549 PT 2,5-TWIN
- 3212044 D-PT 6
- 3030174 FBS 3-5
- 1622452 EV-CC-AC1-M3-CBC-SER-HS
- 1405213 EV-T2M3SE12-3AC20A-0,7M2,5E10
- 3208760 PT 16-TWIN N
- 3022276 CLIPFIX 35-5
- 3030488 D-ST 2,5-TWIN
- 3025040 ZFK 6-DREHSI (5X20)
- 3208799 D-PT 16-TWIN N
- Type of charging point
- AC infrastructure socket outlet, 12 V locking actuator, self-closing IP54 protective cover
- Wiring diagram
- Including download of sample E-Plan
Dimensions
- Cable length of locking actuator
- 0.50 m
- Conductor length
- 0.70 m
Electrical properties
- Charge current
- 16 A
- Charging power
- 11 kW
- Charging voltage
- 400 V AC
- Type of charging current
- AC 3-phase
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Product definition
- Application
- For easy assembly of a charging station
- Charging mode
- Mode 3, Case B
- Charging standard
- Type 2
- Locking release in the event of mains failure
- Integrated release function of the locking actuator for disconnection of Infrastructure Plug and Infrastructure Socket Outlet
- Note
- The installation and startup of this device may only be performed by an electrically skilled person. Observe the applicable national standards and regulations.
- The individual components bear a CE marking if legally required.
- Set of all Phoenix Contact charging technology products and terminal blocks with recommendations for further components required (charging contactor, safety equipment)
- Number of supported charging points
- 1
- Standards/regulations
- IEC 62196-2
- IEC 61851-1
- Type
- HOME charging technology set starter kit
