Description

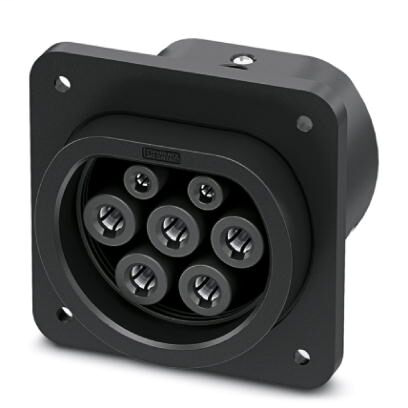

Socket Outlet, Rear protective cover screw connection, Without locking actuator, For charging electric vehicles (EV) with alternating current (AC), Compatible with infrastructure charging plugs, Type 2, IEC 62196-2, 32 A / 480 V (AC), Single wires, length: 1.5 m, Front and rear mounting, Generation 1, 'PHOENIX CONTACT' logo, NOTE This product version does not include a locking actuator.Socket Outlet - EV-T2M3S-3AC32A-1,5M6,0E00 - 1627229
Phoenix Contact 1627229 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -30 °C - 50 °C
- Ambient temperature (storage/transport)
- -40 °C - 80 °C
- Degree of protection
- IP54 (with protective cover, see accessories)
- IP44 (plugged in)
- Max. altitude
- 5000 m (above sea level)
Design
- Customer variations
- On request
- Design line
- Generation 1
- Housing color
- black
Dimensions
- Bore dimensions
- 60 mm x 60 mm
- Cable structure
- 5x 6.0 mm² + 2x 0.5 mm²
- Conductor length
- 1.5 m
- Depth
- 70.8 mm
- Height
- 79.5 mm
- Type of conductor
- Single wires
- Width
- 75 mm
Electrical properties
- Maximum charging power
- 22 kW
- Note on the connection method
- Crimp connection, cannot be disconnected
- Number of phases
- 3
- Number of power contacts
- 5 (L1, L2, L3, N, PE)
- Number of signal contacts
- 2 (CP, PP)
- Rated current for signal contacts
- 2 A
- Rated current of power contacts
- 32 A
- Rated voltage for power contacts
- 480 V AC
- Rated voltage for signal contacts
- 30 V AC
- Type of charging current
- AC 3-phase
- Type of signal transmission
- Pulse width modulation
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 10;
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
Material
- Material
- Plastic
- Material surface of contacts
- Ag
Mechanical properties
- Insertion force
- < 100 N
- Insertion/withdrawal cycles
- > 10000
- Withdrawal force
- < 100 N
Mounting
- Max. wall thickness
- max. 10 mm (Front mounting, when using the locking mechanism)
- max. 50 mm (Rear panel mounting, normative maximum specification for infrastructure plug)
- max. 28 mm (Rear mounting, normative maximum specification for infrastructure plug when using protective cover 1405217)
- Mounting hole diameter
- 7.00 mm (ø)
- Mounting position of the locking actuator
- Top center
- Possible mounting positions
- Front and rear mounting
- Restrictions to mounting position
- Only 0 to 90 degree frontal inclination possible, see figure
- Screw connection of a protective cover
- Only possible on the front
Product definition
- Affixed logo
- PHOENIX CONTACT' logo
- Application
- For charging electric vehicles (EV) with alternating current (AC)
- Compatible with infrastructure charging plugs
- Charging mode
- Mode 3, Case B
- Charging standard
- Type 2
- Design
- Generation 1
- Note
- NOTE This product version does not include a locking actuator.
- Make sure that the Infrastructure Plug is locked into the Infrastructure Socket Outlet during the charging process according to IEC 61851-1. We recommend using our locking actuators (1624129, 1622317). If another type of locking is selected, we recommend sealing the mounting surface (1621465), see also accessories.
- Note on the connection method
- Crimp connection, cannot be disconnected
- Standards/regulations
- IEC 62196-2
- Type
- Without locking actuator
- Rear protective cover screw connection
