Phoenix Contact 1627049
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

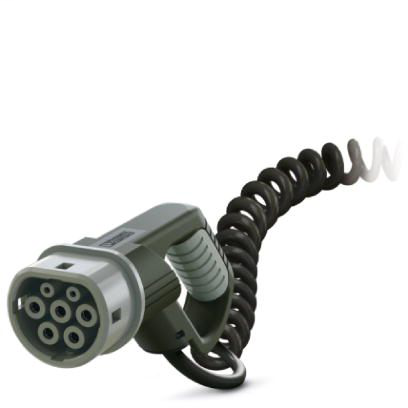

AC charging cable with Vehicle Connector, open cable end, with protective cap, Design line 1, Type 2, IEC 62196-2, 20 A / 250 V (AC), design line D-Line, cable: 4 m, black, spiraled, mating face: gray, handle area: grayAC charging cable 1627049
Phoenix Contact 1627049 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -30 °C - 50 °C
- Ambient temperature (storage/transport)
- -40 °C - 80 °C
- Degree of protection
- IP44 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products)
- IP44 (Protective cap)
- Max. altitude
- 5000 m (above sea level)
Cable
- Block length
- 0.68 m ±10 %
- Cable structure
- 3 x 2.5 mm² + 1 x 0.5 mm²
- Coil diameter
- 45 mm ±10 %
- Effective length
- max. 4 m ±5 %
- External cable diameter
- 10.2 mm ±0,3 mm
- External sheath, color
- black
- Minimum bending radius
- 153 mm (15 x diameter)
- Outer sheath, material
- TPE-U
- Type of conductor
- spiraled
- Wiring certifications
- VDE
- Wiring class
- Class 5
- Wiring standards/regulations
- prEN 50620 / DIN EN 50620
Design
- Color handle area
- gray
- Color protective cap
- black
- Design line
- D-Line
- Housing color
- black
- Label
- 14.1 mm x 44.8 mm (customer logo on request)
- Mating face color
- gray
Dimensions
- Conductor length
- 4 m
- Stripping length
- 45 mm ±10 mm
- Vehicle connector depth
- 229.60 mm
- Vehicle connector height
- 102.90 mm
- Vehicle connector width
- 60.00 mm
Electrical properties
- Maximum charging power
- 5 kW
- Note on the connection method
- Crimp connection, cannot be disconnected
- Number of phases
- 1
- Number of power contacts
- 3 (L1, N, PE)
- Number of signal contacts
- 2 (CP, PP)
- Rated current for signal contacts
- 2 A
- Rated current of power contacts
- 20 A
- Rated voltage for power contacts
- 250 V AC
- Rated voltage for signal contacts
- 30 V AC
- Resistor coding
- 680 Ω (between PE and PP)
- Type of signal transmission
- Pulse width modulation
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 10;
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Locking
- Locking type
- No locking option for U-lock
Material
- Housing material
- Plastic
- Material handle area
- Soft plastic
- Material mating face
- Plastic
- Material protective cap
- Soft plastic
- Material surface of contacts
- Ag
Mechanical properties
- Insertion force
- < 100 N
- Insertion/withdrawal cycles
- > 10000
- Withdrawal force
- < 100 N
Product definition
- Charging mode
- Mode 3, Case C
- Charging standard
- Type 2
- Product type
- AC charging cable with Vehicle Connector, open cable end, with protective cap
- Standards/regulations
- IEC 62196-2
- Type
- D-Line
