Phoenix Contact 1624138
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

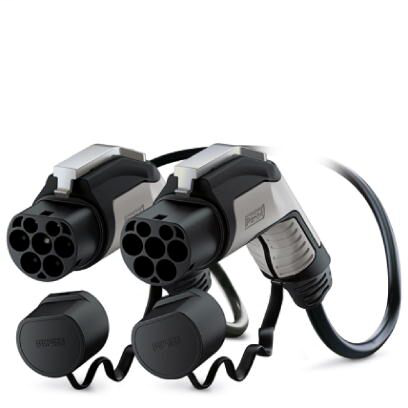

Mobile AC charging cable, With vehicle charging connector and infrastructure charging plug, With protective caps, Housing color black-gray, With locking option for padlock, For charging electric vehicles (EV) with alternating current (AC) via GB/T vehicle charging inlets, Compatible with GB/T infrastructure charging sockets at charging stations for electromobility (EVSE), GB/T, GB/T 20234.2-2015, GB/T 18487.1-2015, 32 A / 440 V (AC), C-Line, 'PHOENIX CONTACT' logo, cable: 5 m, black, straightAC charging cable - EV-GBG3JK-3AC32A-5,0M6,0ESBK01 - 1624138
Phoenix Contact 1624138 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -30 °C - 50 °C
- Ambient temperature (storage/transport)
- -40 °C - 80 °C
- Degree of protection
- IP55 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products)
- IP54 (Protective cap)
- Max. altitude
- 5000 m (above sea level)
Cable
- Cable resistance
- ≤ 0.0033 Ω/m (based on a power core, at an ambient temperature of 20°C)
- Cable structure
- 5 x 6.0 mm² + 1 x 0.5 mm²
- Cable weight
- max. 505 kg/km
- External cable diameter
- 17 mm ±0.4 mm
- External sheath, color
- black
- Minimum bending radius
- 127.5 mm (7.5 x diameter)
- Outer sheath, material
- TPE-U
- Type of conductor
- straight
- Wiring certifications
- VDE
- Wiring class
- Class 5
- Wiring standards/regulations
- prEN 50620 / DIN EN 50620
Design
- Actuating element color
- silver
- Color handle area
- gray
- Color protective cap
- black
- Customer variations
- On request
- Design line
- C-Line
- Housing color
- black
- Mating face color
- black
Dimensions
- Conductor length
- 5 m
- Depth
- 249.2 mm (Infrastructure charging plug)
- 238.7 mm (Vehicle charging connector)
- Height
- 151.3 mm (Vehicle charging connector)
- 151.3 mm (Infrastructure charging plug)
- Width
- 58 mm (Vehicle charging connector)
- 58 mm (Infrastructure charging plug)
Electrical properties
- Maximum charging power
- 24.39 kW
- Note on the connection method
- Crimp connection, cannot be disconnected
- Number of phases
- 3
- Number of power contacts
- 5 (L1, L2, L3, N, PE)
- Number of signal contacts
- 2 (CP, CC)
- Rated current for signal contacts
- 2 A
- Rated current of power contacts
- 32 A
- Rated voltage for power contacts
- 440 V
- Rated voltage for signal contacts
- 30 V AC
- Resistor coding
- 220 Ω (Lever not actuated)
- 220 Ω + 3,.3 kΩ (Lever actuated)
- Type of signal transmission
- Pulse width modulation
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 10;
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
Locking
- Locking type
- Locking option for actuating lever with 4 mm U-lock
Material
- Actuating lever material
- Metal
- Housing material
- Plastic
- Material handle area
- Soft plastic
- Material mating face
- Plastic
- Material protective cap
- Soft plastic
- Material surface of contacts
- Ag
Mechanical properties
- Insertion force
- < 100 N
- Insertion/withdrawal cycles
- > 10000
- Withdrawal force
- < 100 N
Product definition
- Affixed logo
- PHOENIX CONTACT' logo
- Application
- Compatible with GB/T infrastructure charging sockets at charging stations for electromobility (EVSE)
- For charging electric vehicles (EV) with alternating current (AC) via GB/T vehicle charging inlets
- Charging mode
- Mode 3, Case B
- Charging standard
- GB/T
- Design
- C-Line
- Standards/regulations
- GB/T 20234.2-2015
- GB/T 18487.1-2015
- Type
- With vehicle charging connector and infrastructure charging plug
- With locking option for padlock
- Housing color black-gray
- With protective caps
- Mobile AC charging cable
