Phoenix Contact 1623471
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

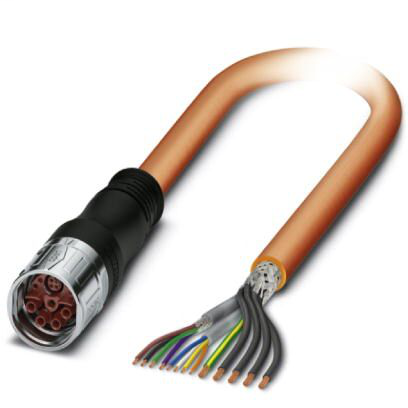

Cable plug in molded plastic, length: 0.3 m, color of outer sheath: orange RAL 2003Cable plug in molded plastic - K-8E-OE/0,3-H00/M23F8-C5-S - 1623471
Phoenix Contact 1623471 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Cable specifications
- Acceleration
- 30 m/s²
- Ambient temperature for fixed installation
- -40 °C - 80 °C
- Ambient temperature for flexible installation
- -30 °C - 60 °C
- Cable structure
- (5x 2.5 + 2x (2x 0.5) + (4x 0.34)C) C
- External cable diameter
- 15.5 mm ±0.5 mm
- External sheath, color
- orange RAL 2003
- Flame resistance
- IEC 60332-1-2
- Halogen-free
- According to EN 50267-2-1
- Material wire insulation
- TPE
- Nominal voltage, cable
- 1000 V (300 V signal)
- Number of bending cycles
- 1000000
- Outer sheath, material
- PUR
- Rated current
- 26 A (Power, according to DIN VDE 0298-4 tab. 11/5)
- 8 A (Signal, according to DIN VDE 0298-4 tab. 11/5)
- 3.6 A (Data, according to DIN VDE 0298-4 tab. 11/5)
- Resistance to oil
- EN 60811-2-1
- Shielded
- yes
- Signal type
- CAT5
- Single wire, color
- Black 1, black 2, black 3, black 4, green/yellow Power wires + PE
- blue, yellow, white, orange Data wires
- brown, violet, black 5, green Signal wires
- Smallest bending radius, fixed installation
- 73 mm
- Smallest bending radius, movable installation
- 148 mm
- Special properties
- Flexible cable conduit capable
- Test voltage
- 4 kV (1.5 kV signal)
- Transmission speed
- 100 Mbps (Data interface)
- Traversing path
- 6 m
- Type of cable
- HDSLC11Y-J
- UL AWM style
- 20234 / 10492 (80°C/1000 V)
Connector specifications
- Degree of pollution
- 3
- Degree of protection
- IP67, when in locked state
- IP68, when in locked state
- Direction of rotation
- Standard
- Housing material
- PUR
- Insertion/withdrawal cycles
- 100
- Locking type
- SPEEDCON locking
- Max. current
- 30 A
- Number of positions
- 4+4+4+PE
- Overvoltage category
- III
- Rated surge voltage
- 6 kV
- Thread type
- M23
- Type
- straight plastic-sheathed
- Type of contact
- Socket
- Voltage
- 630 V AC
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
