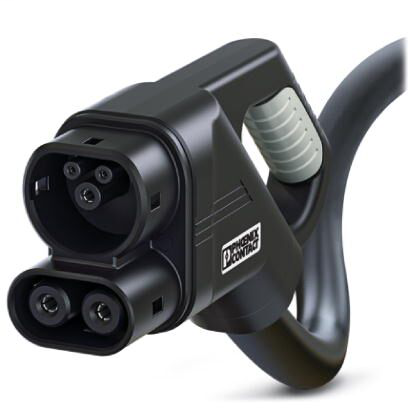

Phoenix Contact 1622896

Ambient conditions

• Ambient temperature (operation)
  • -30 °C - 50 °C
• Ambient temperature (storage/transport)
  • -40 °C - 80 °C
• Degree of protection
  • IP44 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products)
  • IP20 (when not plugged in, the required IP24 degree of protection must be ensured by other means, e.g., by a holder, see accessories)
• Max. altitude
  • 5000 m (above sea level)

Design

• Color handle area
  • gray
• Design line
  • Standard
• Housing color
  • black
• Label
  • 14.1 mm x 44.8 mm (customer logo on request)
• Mating face color
  • black

Dimensions

• Conductor length
  • 10 cm
• Depth
  • 267 mm
• Height
  • 139 mm
• Width
  • 75 mm

Environmental Product Compliance

• China RoHS
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
  • Environmentally Friendly Use Period = 10;
• REACh SVHC
  • Lead 7439-92-1

Mechanical properties

• Insertion force
  • < 100 N
• Insertion/withdrawal cycles
  • > 10000
• Withdrawal force
  • < 100 N

Product definition

• Application
  • Demonstration sample for trade fairs and customer visits
• Charging mode
  • Mode 4
• Charging standard
  • CCS type 2
  • Combined Charging System
• Design
  • D-Line
• Standards/regulations
  • IEC 62196-3
• Type
  • Demo sample
  • No function
