Phoenix Contact 1621742
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

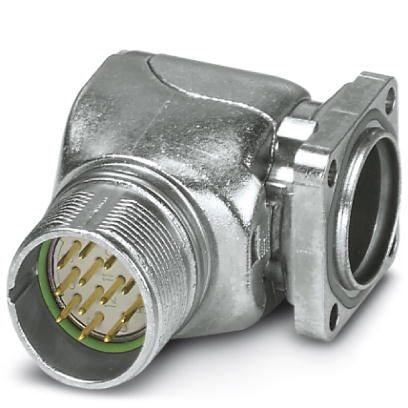

Device connector for front wall, RC, angled rotatable, shielded: yes, for standard and SPEEDCON interlock, M23, No. of pos.: 12, type of contact: Pin, Solder connection, Axial O-ring, 4x Ø 3.2Device connector, front mounting - CA-12P2N12AD00 - 1621742
Phoenix Contact 1621742 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Data of the insulating body
- Application
- Signal
- Coding
- N
- Contact connection method
- Solder connection
- Contact diameter of power contacts
- 1 mm
- Contact material
- CuZn
- Contact surface material
- Ni/Au
- Degree of pollution
- 3
- Direction of rotation
- Counter direction
- Insertion/withdrawal cycles mechanical
- 100
- Insulator material
- PBT
- Litz wire cross section of power contacts max.
- 1 mm²
- Litz wire cross section of power contacts min.
- 0.08 mm²
- Number of positions
- 12
- Overvoltage category
- II
- Rated current for power contacts
- 8 A
- Rated surge voltage
- 1.5 kV
- Rated voltage of power contact
- 150 V
- Type of contacts
- Pin
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Housing data
- Degree of protection (when plugged in)
- IP67
- Housing material
- Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn)
- Thread type
- M23
- Type of locking
- for standard and SPEEDCON interlock
