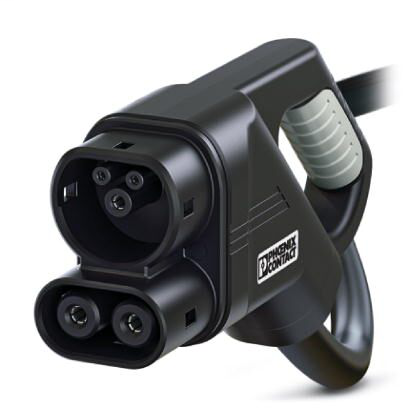

Phoenix Contact 1621650

Ambient conditions

• Ambient temperature (operation)
  • -30 °C - 50 °C
• Ambient temperature (storage/transport)
  • -40 °C - 80 °C
• Degree of protection
  • IP20 (when not plugged in, the required IP24 degree of protection must be ensured by other means, e.g., by a holder, see accessories)
  • IP44 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products)
• Max. altitude
  • 5000 m (above sea level)

Cable

• Cable resistance
  • ≤ 0.00039 Ω/m (based on a power core, at an ambient temperature of 20°C)
• Cable structure
  • 2 x 50 mm² + 1 x 25 mm² + 3 x 2 x 0.75 mm²
• Cable weight
  • max. 1620 kg/km
• External cable diameter
  • 28.1 mm ±0.5 mm
• External sheath, color
  • black
• Minimum bending radius
  • 281 mm (10 x diameter)
• Outer sheath, material
  • TPE-U
• Type of conductor
  • straight
• Wiring certifications
  • VDE-Reg. 8798
• Wiring class
  • Class 6
• Wiring standards/regulations
  • prEN 50620 / DIN EN 50620

Design

• Color handle area
  • gray
• Design line
  • Standard
• Housing color
  • black
• Label
  • 14.1 mm x 44.8 mm (customer logo on request)
• Mating face color
  • black

Dimensions

• Conductor length
  • 4 m
• Depth
  • 267 mm (Vehicle charging connector)
• Height
  • 139 mm (Vehicle charging connector)
• Stripping length
  • 140 mm ±10 mm
• Width
  • 75 mm (Vehicle charging connector)

Electrical properties

• Maximum charging power
  • 125 kW
• Note on the connection method
  • Crimp connection, cannot be disconnected
• Number of power contacts
  • 3 (PE, DC+, DC-)
• Number of signal contacts
  • 2 (CP, PP)
• Rated current for signal contacts
  • 2 A
• Rated current of power contacts
  • 125 A
• Rated voltage for power contacts
  • 1000 V DC
• Rated voltage for signal contacts
  • 30 V AC
• Resistor coding
  • 1500 Ω (between PE and PP)
• Temperature monitoring
  • 2x Pt 1000
• Type of signal transmission
  • Pulse width modulation with modulated Powerline communication according to ISO/IEC 15118 / DIN SPEC 70121

Environmental Product Compliance

• China RoHS
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
  • Environmentally Friendly Use Period = 10;
• REACh SVHC
  • Lead 7439-92-1

Material

• Flammability rating
  • V0
• Housing material
  • Plastic
• Material handle area
  • Soft plastic
• Material mating face
  • Plastic
• Material surface of contacts
  • Ag

Mechanical properties

• Insertion force
  • < 100 N
• Insertion/withdrawal cycles
  • > 10000
• Withdrawal force
  • < 100 N

Product definition

• Affixed logo
  • PHOENIX CONTACT' logo
• Application
  • For installation at charging stations for electromobility (EVSE)
  • For charging electric vehicles (EV) with direct current (DC)
• Charging mode
  • Mode 4
• Charging standard
  • Combined Charging System
  • CCS type 2
• Design
  • D-Line 1.0
• Standards/regulations
  • IEC 62196-3
• Type
  • With vehicle charging connector and open cable end
  • DC charging cable
  • Housing color black-gray

Temperature sensors

• Long-term stability (max. R0-Drift)
  • 0.06 % (After 1000 hours at 130°C)
• Recommended measured current
  • 1 mA (1 V at 0°C)
• Shutdown temperature
  • 90 °C equivalent to a Pt 1000 value of 1346.5 Ω
• Standards/regulations
  • DIN EN 60751
• Temperature coefficient (TCR)
  • 3850 ppm/K
• Temperature range
  • -50 °C - 130 °C
• Tolerance at the sensor with the recommended measured current
  • ±1K
• Type of sensor
  • Pt 1000
