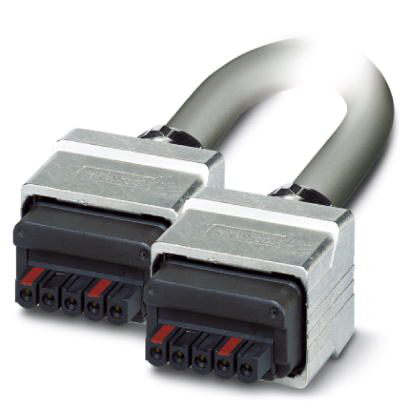

Phoenix Contact 1609183
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Assembled PROFINET power cable, 24 V, 5 x 2.5 mm², stranded (50-wire), color RAL 7001 (silver gray), PPC-MSTB metal on PPC-MSTB metal, length: 2 mCable - VS-P1220-P1220-C1020/ 2,0 - 1609183
Phoenix Contact 1609183 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -5 °C - 70 °C (cable, flexible installation)
- -40 °C - 70 °C (cable, fixed installation)
- Plug / socket
- Degree of protection
- IP65
- IP67
Cable
- Ambient temperature (operation)
- -5 °C - 70 °C (cable, flexible installation)
- -40 °C - 80 °C (cable, fixed installation)
- AWG power supply
- 14
- Cable type
- PVC gray
- Cable type (abbreviation)
- PVC
- Cable weight
- 242 kg/km
- Conductor cross section
- 5x 2.5 mm²
- Conductor material
- Bare Cu litz wires
- Conductor structure, voltage supply
- 50x 0.25 mm
- External cable diameter D
- 11.8 mm
- External sheath, color
- gray RAL 7001
- Flame resistance
- according to IEC 60332-1-2
- Insulation resistance
- > 0.2 MΩ*km
- Material conductor insulation
- PVC
- Minimum bending radius, fixed installation
- 4 x D
- Minimum bending radius, flexible installation
- 15 x D
- Nominal voltage, cable
- 750 V
- 1000 V (Fixed, protected installation)
- Outer sheath, material
- PVC
- Overall twist
- 5 cores, twisted
- Test voltage, cable
- 4000 V
- Wire colors
- blue, brown, black, gray, green/yellow
Characteristics head 1
- External sheath, color
- silver-gray RAL 7001
- Outer sheath, material
- PVC
- Shielded
- no
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
General data
- Alternative short product description
- PROFINET power cable
- Contact carrier material
- PA
- Contact material
- Copper alloy
- Contact surface material
- Gold over nickel
- Degree of protection
- IP65/IP67
- Housing material
- Zinc die-cast
- Locking type
- Push Pull
- Note
- This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 11 Connectors for 24 Volt Power Supply Cabling and Chapter 13 Application specific Cabling and Interconnection Technology (AIDA)
- Number of positions
- 5
- Rated current
- 16 A
- Rated voltage
- 24 V
- Rated voltage (III/3)
- 24 V
