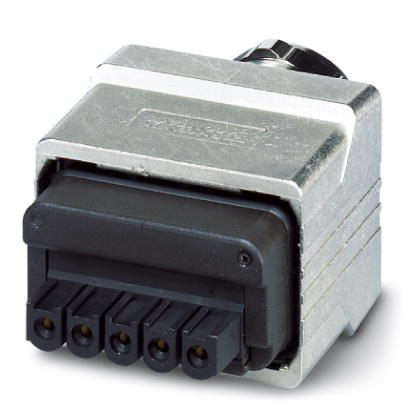

Phoenix Contact 1608074
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Power connectors, degree of protection: IP65, number of positions: 5, material: Zinc die-cast, connection method: Spring-cage connection, connection cross section: AWG 18- 13, cable outlet: straight, color: silverPower connectors 1608074
Phoenix Contact 1608074 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (assembly)
- -5 °C - 100 °C
- Ambient temperature (operation)
- -40 °C - 70 °C
- Ambient temperature (storage/transport)
- -40 °C - 70 °C
- Degree of protection
- IP65
Characteristics head 1
- Stripping length of the individual wire
- 10 mm
- Stripping length of the sheath
- 35 mm
Dimensions
- External cable diameter
- 9 mm - 13 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
- Environmentally Friendly Use Period = 50
General data
- Alternative short product description
- MSTB connector
- COMBICON connection data
- 0.75 mm² 2.5 mm² 0.75 mm² 2.5 mm² 18 13 2.5 mm²
- Conductor cross section
- 0.75 mm² - 2.5 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.
- 2.5 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve min.
- 0.75 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.
- 2.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.
- 0.75 mm²
- Connection cross section AWG
- 18 - 13
- Connection method
- Spring-cage connection
- Contact carrier material
- PA
- Contact material
- Copper alloy
- Contact surface material
- Gold over nickel
- Degree of pollution
- 2
- Housing material
- Zinc die-cast
- Locking type
- Push Pull
- Note
- This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 11 Connectors for 24 Volt Power Supply Cabling and Chapter 13 Application specific Cabling and Interconnection Technology (AIDA)
- Number of positions
- 5
- Rated current
- 16 A
- Rated current at 40°C
- 16 A
- Rated surge voltage (II/2)
- 4 kV
- Rated surge voltage (III/2)
- 4 kV
- Rated surge voltage (III/3)
- 4 kV
- Rated voltage
- 24 V
- 250 V
- Rated voltage (II/2)
- 630 V
- Rated voltage (III/2)
- 400 V
- Rated voltage (III/3)
- 24 V
- Signal type/category
- Universal
Standards and Regulations
- Connection in acc. with standard
- CUL
- Flammability rating according to UL 94
- V0
